INA4180A1IPWR _ Instrumentation, OP Amps, Buffer Amps_Amplifiers_Linear_Integrated Circuits (ICs)

Part Number	INA4180A1IPWR
Manufacturer	Texas Instruments
Other Part Numbers	296-49094-2-ND 296-49094-1-ND 296-49094-6-ND INA4180A1IPWR-ND 296-49094-6 296-49094-1 296-49094-2
Description	IC CURR SENSE 4 CIRCUIT 14TSSOP
Detailed Description	Current Sense Amplifier 4 Circuit Rail-to-Rail 14-TSSOP
Manufacturer Standard Lead Time	12 weeks
Datasheet	Datasheet

Category		Integrated Circuits (ICs) Linear Amplifiers Instrumentation, OP Amps, Buffer Amps
Manufacturer		Texas Instruments
Series
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active

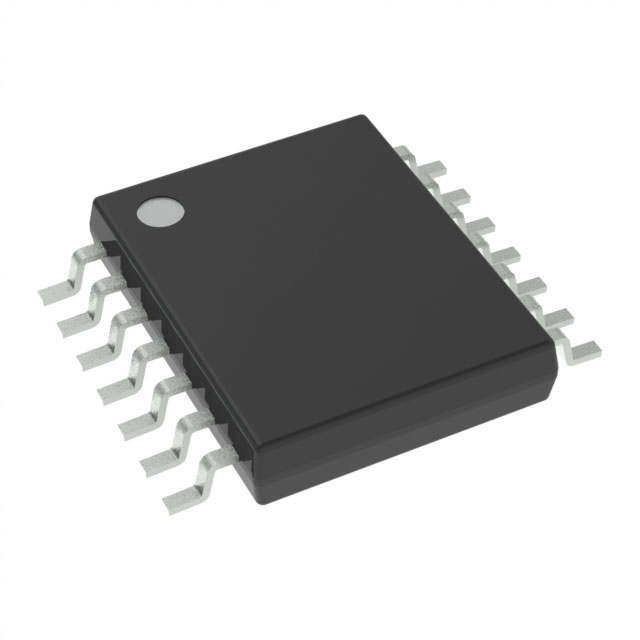

Package / Case		14-TSSOP (0.173", 4.40mm Width)
Output Type		Rail-to-Rail
Mounting Type		Surface Mount
Amplifier Type		Current Sense
Operating Temperature		-40°C ~ 125°C (TA)
Current - Supply		690µA
Slew Rate		2V/µs
Gain Bandwidth Product		350 kHz
Current - Input Bias		80 µA
Voltage - Input Offset		100 µV
Supplier Device Package		14-TSSOP
Number of Circuits		4
Current - Output / Channel		8 mA
-3db Bandwidth		350 kHz
Voltage - Supply Span (Min)		2.7 V
Voltage - Supply Span (Max)		5.5 V

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.33.0001
Moisture Sensitivity Level (MSL)		2 (1 Year)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

Can ship immediately.

QUANTITY

PACKAGING	QUANTITY	UNIT PRICE	EXT PRICE
{{ p.name }}	{{ numberFormat(p.buyQty) }}	{{ priceFormat(p.unitPrice) }}	{{ priceFormat(p.totalPrice) }}
Total Amount: {{ priceFormat(quotes.total) }} (including {{ priceFormat(quotes.fee) }} fee)

QUANTITY	UNIT PRICE	EXT PRICE
{{ numberFormat(price.break_quantity) }}	{{ priceFormat(price.unit_price) }}	{{ priceFormat(price.break_quantity * price.unit_price) }}

Detailed pricing is currently unavailable.

Detailed packaging information is temporarily unavailable.
