IMS5-08-02

IMS5-08-02

Part Number	IMS5-08-02
Manufacturer	Samtec, Inc.
Other Part Numbers	SAM11399-ND SAM11399 IMS5-08-02-ND
Description	IMS5

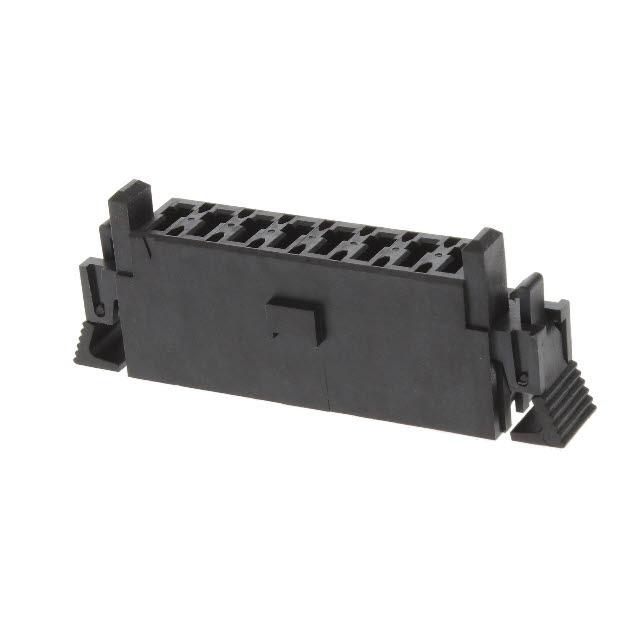

Detailed Description	8 Position Blade Type Power Housing Connector Receptacle Black 0.197" (5.00mm)
Manufacturer Standard Lead Time	6 weeks
Datasheet	Datasheet

Product Attributes

Category		Connectors, Interconnects Blade Type Power Connectors Blade Type Power Connector Housings
Manufacturer		Samtec, Inc.
Series		IMS5
Packaging		Bulk
Part Status		Active
Features		Panel Lock
Connector Type		Receptacle
Contact Termination		Crimp
Color		Black
Mounting Type		Free Hanging (In-Line)
Pitch		0.197" (5.00mm)
Contact Type		Female Blade Socket
Fastening Type		Latch Lock
Material - Insulation		Polyamide (PA66), Nylon 6/6
Stacking Direction		Side to Side
Note		Contacts Not Included
Number of Rows		1
Number of Positions		8

Documents & Media

RESOURCE TYPE		LINK
Datasheets		IMS5-08-02

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
California Prop 65		California Prop 65 Information
ECCN		EAR99
HTSUS		8538.90.6000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 1451

Can ship immediately.
