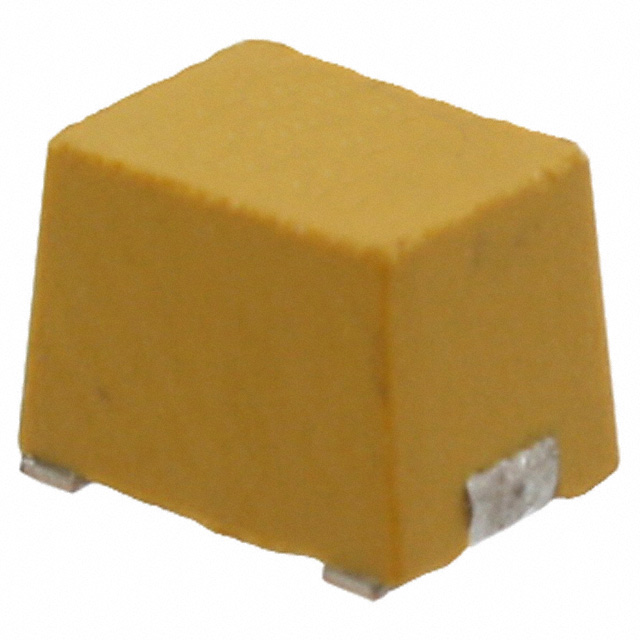

IMC1812BN821K _ Fixed Inductors_Inductors, Coils, Chokes

Part Number	IMC1812BN821K
Manufacturer	Vishay / Dale
Other Part Numbers	IMC1812BN821K-ND
Description	FIXED IND 820UH 30MA 35 OHM SMD
Detailed Description	820 µH Unshielded Drum Core, Wirewound Inductor 30 mA 35Ohm Max 1812 (4532 Metric)
Manufacturer Standard Lead Time	22 weeks
Datasheet	Datasheet

Category		Inductors, Coils, Chokes Fixed Inductors
Manufacturer		Vishay / Dale
Series		IMC-1812
Packaging		Bulk
Part Status		Active
Tolerance		±10%
Package / Case		1812 (4532 Metric)
Size / Dimension		0.177" L x 0.126" W (4.50mm x 3.20mm)
Mounting Type		Surface Mount
Shielding		Unshielded
Type		Drum Core, Wirewound
Operating Temperature		-55°C ~ 125°C
DC Resistance (DCR)		35Ohm Max
Q @ Freq		30 @ 790kHz
Frequency - Self Resonant		2.5MHz
Material - Core		Ferrite
Inductance Frequency - Test		790 kHz
Supplier Device Package		1812
Height - Seated (Max)		0.134" (3.40mm)
Inductance		820 µH
Current Rating (Amps)		30 mA

RESOURCE TYPE		LINK
Datasheets		IMC1812BN821K

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8504.50.8000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Affected
RoHS Status		RoHS non-compliant
