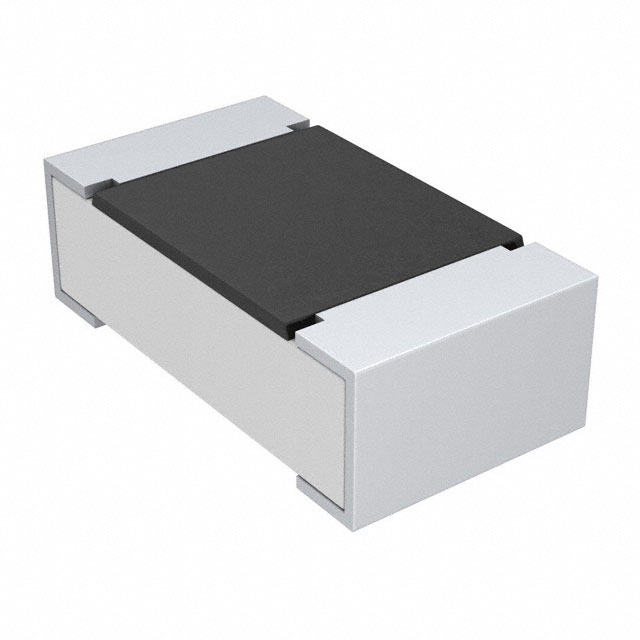

IMC0603ER68NJ01 _ Fixed Inductors_Inductors, Coils, Chokes

Part Number	IMC0603ER68NJ01
Manufacturer	Vishay / Dale
Other Part Numbers	IMC0603ER68NJ01-ND
Description	FIXED IND 68NH 600MA 340MOHM SMD
Detailed Description	68 nH Unshielded Wirewound Inductor 600 mA 340mOhm Max 0603 (1608 Metric)
Manufacturer Standard Lead Time	18 weeks
Datasheet	Datasheet

Category		Inductors, Coils, Chokes Fixed Inductors
Manufacturer		Vishay / Dale
Series		IMC-0603-01
Packaging		Tape & Reel (TR)
Part Status		Active
Tolerance		±5%
Package / Case		0603 (1608 Metric)
Size / Dimension		0.063" L x 0.041" W (1.60mm x 1.05mm)
Mounting Type		Surface Mount
Shielding		Unshielded
Type		Wirewound
Operating Temperature		-40°C ~ 125°C
DC Resistance (DCR)		340mOhm Max
Q @ Freq		40 @ 200MHz
Frequency - Self Resonant		1.7GHz
Inductance Frequency - Test		200 MHz
Supplier Device Package		0603 (1608 Metric)
Height - Seated (Max)		0.049" (1.25mm)
Inductance		68 nH
Current Rating (Amps)		600 mA

RESOURCE TYPE		LINK
Datasheets		IMC0603ER68NJ01

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8504.50.8000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
