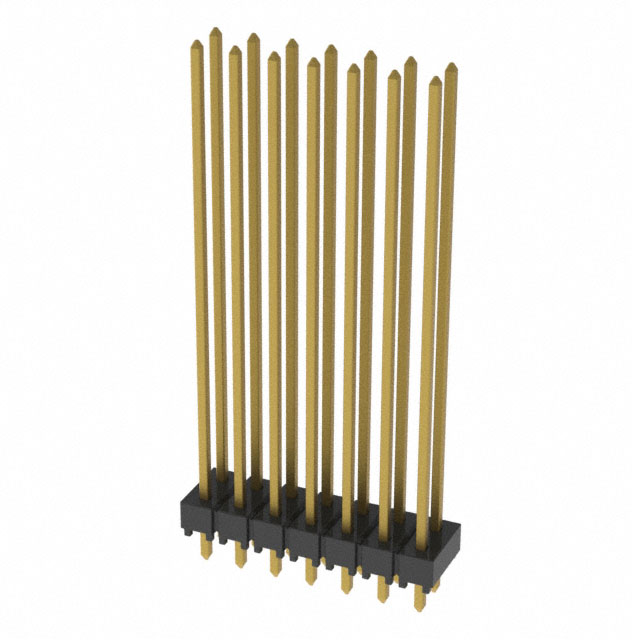

HTSW-107-21-G-D _ Headers, Male Pins_Rectangular Connectors_Connectors, Interconnects

Part Number	HTSW-107-21-G-D
Manufacturer	Samtec, Inc.
Other Part Numbers	HTSW-107-21-G-D-ND
Description	CONN HEADER VERT 14POS 2.54MM
Detailed Description	Connector Header Through Hole 14 position 0.100" (2.54mm)
Manufacturer Standard Lead Time	6 weeks

Category		Connectors, Interconnects Rectangular Connectors Headers, Male Pins
Manufacturer		Samtec, Inc.
Series		HTSW
Packaging		Bulk
Part Status		Active
Connector Type		Header
Current Rating (Amps)		Varies by Wire Gauge
Mounting Type		Through Hole
Number of Positions		14
Number of Rows		2
Style		Board to Board or Cable
Operating Temperature		-55°C ~ 125°C
Contact Type		Male Pin
Fastening Type		Push-Pull
Number of Positions Loaded		All
Termination		Solder
Material Flammability Rating		UL94 V-0
Contact Material		Phosphor Bronze
Insulation Color		Natural
Pitch - Mating		0.100" (2.54mm)
Contact Finish - Mating		Gold
Contact Finish Thickness - Mating		10.0µin (0.25µm)
Contact Finish - Post		Gold
Contact Finish Thickness - Post		3.00µin (0.076µm)
Contact Shape		Square
Contact Length - Post		0.110" (2.79mm)
Insulation Height		0.100" (2.54mm)
Shrouding		Unshrouded
Overall Contact Length		1.430" (36.32mm)
Insulation Material		Liquid Crystal Polymer (LCP)
Row Spacing - Mating		0.100" (2.54mm)
Contact Length - Mating		1.220" (30.99mm)

RESOURCE TYPE		LINK

ATTRIBUTE		DESCRIPTION
California Prop 65		California Prop 65 Information
ECCN		EAR99
HTSUS		8536.69.4040
Moisture Sensitivity Level (MSL)		Not Applicable
RoHS Status		ROHS3 Compliant
