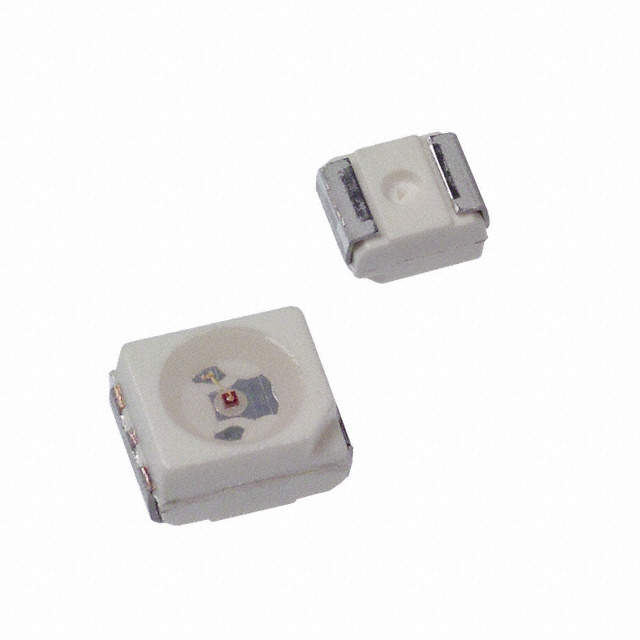

HSMZ-A100-T70J1 _ LED Indication - Discrete_Optoelectronics

Part Number	HSMZ-A100-T70J1
Manufacturer	Broadcom
Other Part Numbers	516-2126-2-ND 516-2126-1-ND 516-2126-6-ND HSMZA100T70J1 516-2126-2 516-2126-1 516-2126-6
Description	LED RED CLEAR 2PLCC SMD
Detailed Description	Red 630nm LED Indication - Discrete 2.2V 2-PLCC
Manufacturer Standard Lead Time	12 weeks
Datasheet	Datasheet

Category		Optoelectronics LED Indication - Discrete
Manufacturer		Broadcom
Series
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Package / Case		2-PLCC
Color		Red
Size / Dimension		3.20mm L x 2.80mm W
Mounting Type		Surface Mount
Millicandela Rating		350mcd
Configuration		Standard
Voltage - Forward (Vf) (Typ)		2.2V
Lens Color		Colorless
Current - Test		20mA
Viewing Angle		120°
Height (Max)		2.10mm
Wavelength - Peak		639nm
Wavelength - Dominant		630nm
Supplier Device Package		2-PLCC
Lens Transparency		Clear
Lens Style		Round with Flat Top
Lens Size		2.20mm Dia

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.41.0000
Moisture Sensitivity Level (MSL)		2A (4 Weeks)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
