HSMC-C680 _ LED Indication - Discrete_Optoelectronics

Part Number	HSMC-C680
Manufacturer	Broadcom
Other Part Numbers	516-HSMC-C680TR-ND 516-HSMC-C680CT-ND 516-HSMC-C680DKR-ND 516-1725-2 516-HSMC-C680DKR 516-1725-1 516-HSMC-C680CT HSMCC680 516-1725-6-ND 516-1725-6 516-HSMC-C680TR 516-1725-1-ND 516-1725-2-ND

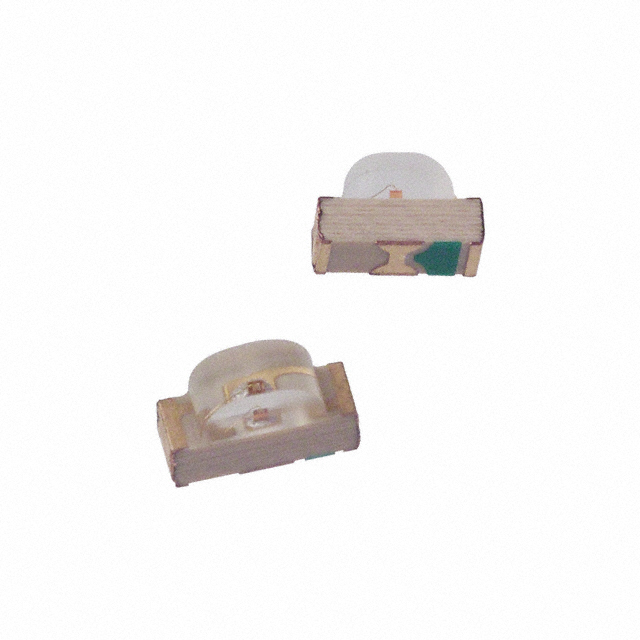

Description	LED RED CLEAR CHIP SMD R/A
Detailed Description	Red 630nm LED Indication - Discrete 2V 2-SMD, No Lead
Manufacturer Standard Lead Time	17 weeks
Datasheet	Datasheet

Category		Optoelectronics LED Indication - Discrete
Manufacturer		Broadcom
Series
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Package / Case		2-SMD, No Lead
Color		Red
Size / Dimension		3.00mm L x 1.00mm W
Mounting Type		Surface Mount, Right Angle
Millicandela Rating		62.3mcd
Configuration		Standard
Voltage - Forward (Vf) (Typ)		2V
Lens Color		Colorless
Current - Test		20mA
Viewing Angle		115°
Height (Max)		1.00mm
Wavelength - Peak		643nm
Wavelength - Dominant		630nm
Supplier Device Package		Chip LED
Lens Transparency		Clear
Lens Style		Rectangle with Domed Top
Lens Size		2.00mm x 1.00mm

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.41.0000
Moisture Sensitivity Level (MSL)		2A (4 Weeks)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
