HSE-B1711-032

Part Number
HSE-B1711-032
Manufacturer CUI Devices
Other Part Numbers
HSE-B1711-032-ND

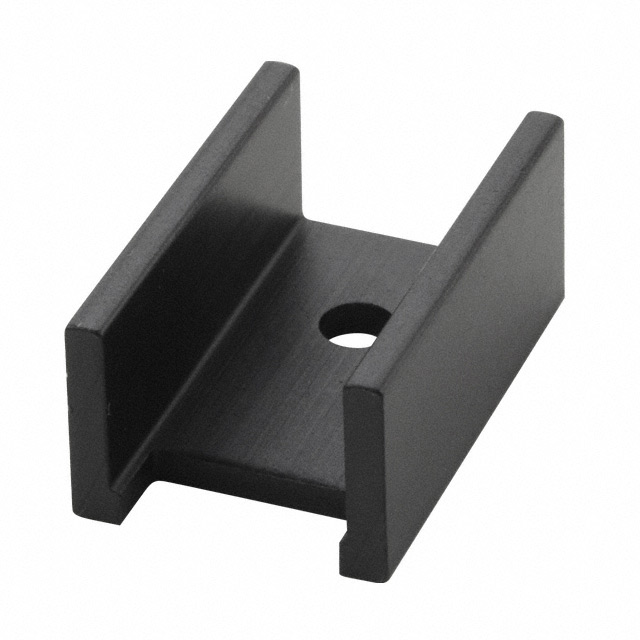

Description HEAT SINK, EXTRUSION, TO-220, 25
Detailed Description Heat Sink TO-220 Aluminum Alloy 3.7W @ 75°C Board Level
Manufacturer Standard Lead Time 16 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer CUI Devices
Series
HSE
Packaging
Box
Part Status Active
Material Aluminum Alloy
Length 0.984" (25.00mm)
Shape Rectangular, Fins
Type Board Level
Width 0.625" (16.00mm)
Package Cooled TO-220
Attachment Method Bolt On
Power Dissipation @ Temperature Rise 3.7W @ 75°C
Thermal Resistance @ Forced Air Flow 6.84°C/W @ 200 LFM
Thermal Resistance @ Natural 20.27°C/W
Fin Height 0.354" (9.00mm)
Material Finish Black Anodized

Documents & Media

RESOURCE TYPE LINK
Datasheets HSE-B1711-032

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8473.30.5100
Moisture Sensitivity Level (MSL) Not Applicable
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant
