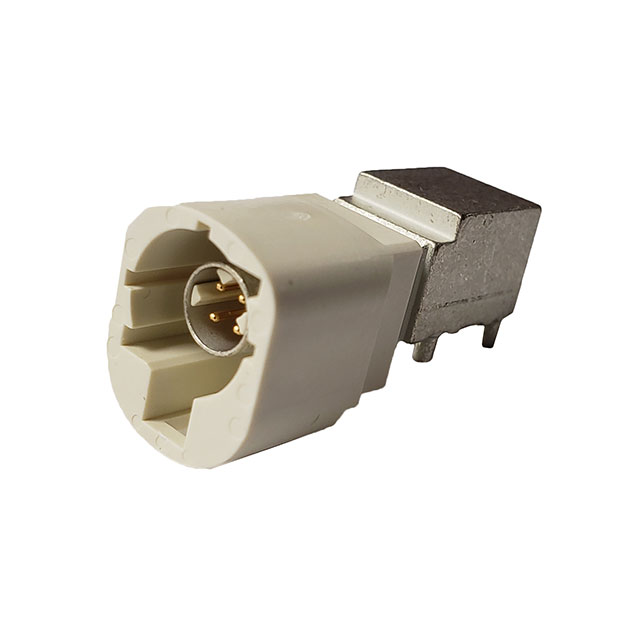

HSD-04B-S-PRB-SG-C1-TR _ Coaxial Connector (RF) Assemblies_Coaxial Connectors (RF)_Connectors, Interconnects

Part Number	HSD-04B-S-PRB-SG-C1-TR
Manufacturer	Adam Tech
Other Part Numbers	2057-HSD-04B-S-PRB-SG-C1-TR-ND 2057-HSD-04B-S-PRB-SG-C1-CT-ND 2057-HSD-04B-S-PRB-SG-C1-DKR-ND 2057-HSD-04B-S-PRB-SG-C1-TR 2057-HSD-04B-S-PRB-SG-C1-CT 2057-HSD-04B-S-PRB-SG-C1-DKR
Description	CONN FAKRA HIGH SPEED DATA 4POS
Detailed Description	HSD®, Fakra, Quadraxial Connector Plug, Male Pin 100 Ohms Through Hole, Right Angle Solder
Manufacturer Standard Lead Time	14 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects Coaxial Connectors (RF) Coaxial Connector (RF) Assemblies
Manufacturer		Adam Tech
Series		HSD
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Features		Code B
Connector Type		Plug, Male Pin
Contact Termination		Solder
Impedance		100 Ohms
Mounting Type		Through Hole, Right Angle
Operating Temperature		-40°C ~ 105°C
Insertion Loss		0.10dB
Fastening Type		Latch Lock
Connector Style		HSD®, Fakra, Quadraxial
Dielectric Material		Polyamide (PA), Nylon
Body Material		Zinc Alloy
Housing Color		White
Mating Cycles		25
Shield Termination		Solder
Center Contact Material		Brass
Body Finish		Tin
Center Contact Plating		Gold
Frequency - Max		2 GHz
Number of Ports		1

RESOURCE TYPE		LINK
Datasheets		HSD-04B-S-PRB-SG-C1-TR
Datasheets		Medical Industry Brochure
Datasheets		HSD Series Assembly Instructions

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4010
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

Can ship immediately.
