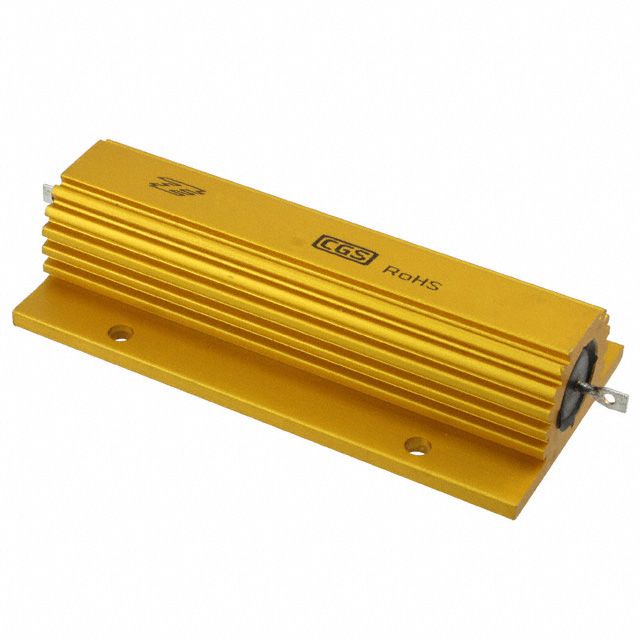

HSC1502R2J

HSC1502R2J

Part Number	HSC1502R2J
Manufacturer	TE Connectivity Passive Product
Other Part Numbers	A102371-ND 1-1630012-9-ND A102371 1-1630012-9 116300129
Description	RES CHAS MNT 2.2 OHM 5% 150W
Detailed Description	2.2 Ohms ±5% 150W Wirewound Chassis Mount Resistor
Manufacturer Standard Lead Time	20 weeks
Datasheet	Datasheet

Product Attributes

Category		Resistors Chassis Mount Resistors
Manufacturer		TE Connectivity Passive Product
Series		HS, CGS
Packaging		Bulk
Part Status		Active
Power (Watts)		150W
Tolerance		±5%
Lead Style		Solder Lugs
Package / Case		Axial, Box
Temperature Coefficient		±50ppm/°C
Size / Dimension		3.858" L x 1.870" W (98.00mm x 47.50mm)
Composition		Wirewound
Operating Temperature		-55°C ~ 200°C
Mounting Feature		Flanges
Coating, Housing Type		Aluminum
Height - Seated (Max)		1.024" (26.00mm)
Resistance		2.2 Ohms

Documents & Media

RESOURCE TYPE		LINK
Datasheets		HSC1502R2J
Datasheets		1-1630012-9 Statement of Compliance
Datasheets		1-1630012-9.pdf
Datasheets		1630012 Drawing

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8533.29.0000
Moisture Sensitivity Level (MSL)		Not Applicable
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 361

Can ship immediately.
