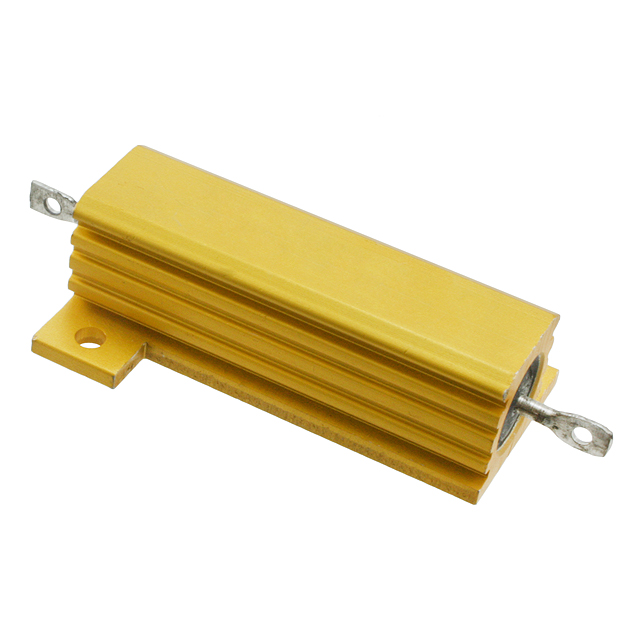

HSA5015RJ

Part Number
HSA5015RJ
Manufacturer TE Connectivity Passive Product
Other Part Numbers
A102432-ND
1-1625984-1-ND
1-1625984-1
116259841
A102432
Description RES CHAS MNT 15 OHM 5% 50W
Detailed Description 15 Ohms ±5% 50W Wirewound Chassis Mount Resistor
Manufacturer Standard Lead Time 10 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer TE Connectivity Passive Product
Series
HS, CGS
Packaging
Bulk
Part Status Active
Power (Watts) 50W
Tolerance ±5%
Lead Style Solder Lugs
Package / Case Axial, Box
Temperature Coefficient ±50ppm/°C
Size / Dimension 2.008" L x 1.181" W (51.00mm x 30.00mm)
Composition Wirewound
Operating Temperature -55°C ~ 200°C
Mounting Feature Flanges
Coating, Housing Type Aluminum
Height - Seated (Max) 0.669" (17.00mm)
Resistance 15 Ohms

Documents & Media

RESOURCE TYPE LINK
Datasheets HSA5015RJ
Datasheets 1-1625984-1 Statement of Compliance
Datasheets 1-1625984-1.pdf
Datasheets 1625984 Drawing

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8533.29.0000
Moisture Sensitivity Level (MSL) Not Applicable
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant

In Stock: 1232

Can ship immediately.
