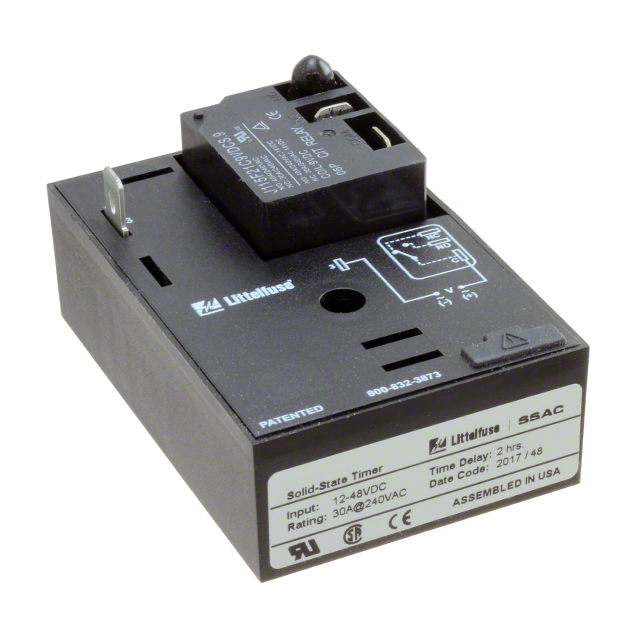

HRPSD12HI

Part Number
HRPSD12HI
Manufacturer Wickmann / Littelfuse
Other Part Numbers
F10543-ND
F10543
-1024-HRPSD12HI
Description RELAY TIME DELAY 2 HR 30A 125V
Detailed Description Off-Delay Time Delay Relay SPDT (1 Form C) Fixed, 2 Hrs Delay 30A @ 125/240VAC Chassis Mount
Manufacturer Standard Lead Time 4 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer Wickmann / Littelfuse
Series
HRPS
Packaging
Bulk
Part Status Active
Delay Time Fixed, 2 Hrs
Mounting Type Chassis Mount
Function Off-Delay
Circuit SPDT (1 Form C)
Termination Style Quick Connect - 0.250" (6.3mm)
Voltage - Supply 12 ~ 48VDC
Contact Rating @ Voltage 30A @ 125/240VAC
Relay Type Mechanical Relay
Timing Adjustment Method Fixed
Timing Initiate Method Input Voltage

Documents & Media

RESOURCE TYPE LINK
Datasheets HRPSD12HI

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
California Prop 65 California Prop 65 Information
ECCN EAR99
HTSUS 9107.00.8000
Moisture Sensitivity Level (MSL) Not Applicable
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant

In Stock: 10

Can ship immediately.
