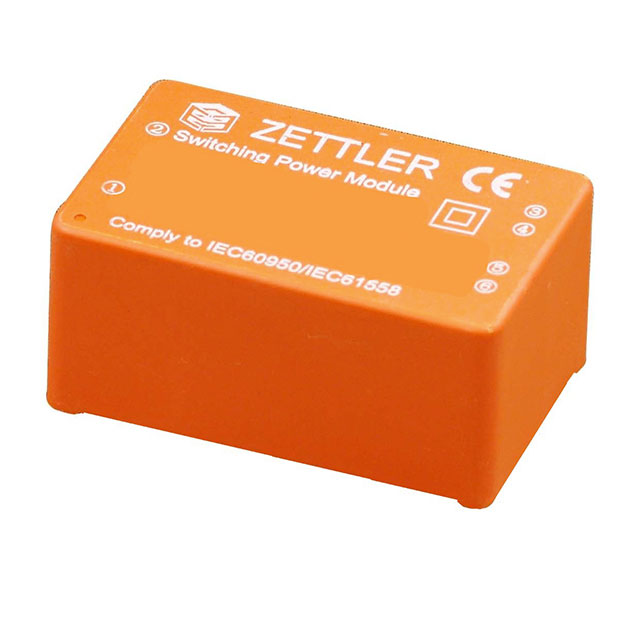

HP01S0600WI _ AC DC Converters_Power Supplies

Part Number	HP01S0600WI
Manufacturer	Zettler Magnetics
Other Part Numbers	3388-HP01S0600WI-ND 3388-HP01S0600WI
Description	1W AC-DC POWER SUPPLY 85-305VAC
Detailed Description	Enclosed AC DC Converters 1 Output 6V 166mA 85 ~ 305 VAC, 100 ~ 430 VDC Input
Manufacturer Standard Lead Time	18 weeks
Datasheet	Datasheet

Category		Power Supplies - Board Mount AC DC Converters
Manufacturer		Zettler Magnetics
Series		HP01SXX00WI (1W)
Packaging		Tube
Part Status		Active
Package / Case		4-DIP Module
Size / Dimension		1.33" L x 0.87" W x 0.59" H (33.7mm x 22.2mm x 15.0mm)
Mounting Type		Through Hole
Voltage - Input		85 ~ 305 VAC, 100 ~ 430 VDC
Type		Enclosed
Operating Temperature		-25°C ~ 85°C
Applications		Household Appliances, ITE (Commercial)
Approval Agency		CE
Efficiency		70%
Current - Output (Max)		166mA
Load Regulation		±0.5%
Line Regulation		±0.5%
Voltage - Output 1		6V
Power (Watts)		996 mW
Number of Outputs		1
Standard Number		62368-1

RESOURCE TYPE		LINK
Datasheets		HP01S0600WI

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8504.40.9510
Moisture Sensitivity Level (MSL)		Not Applicable
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
