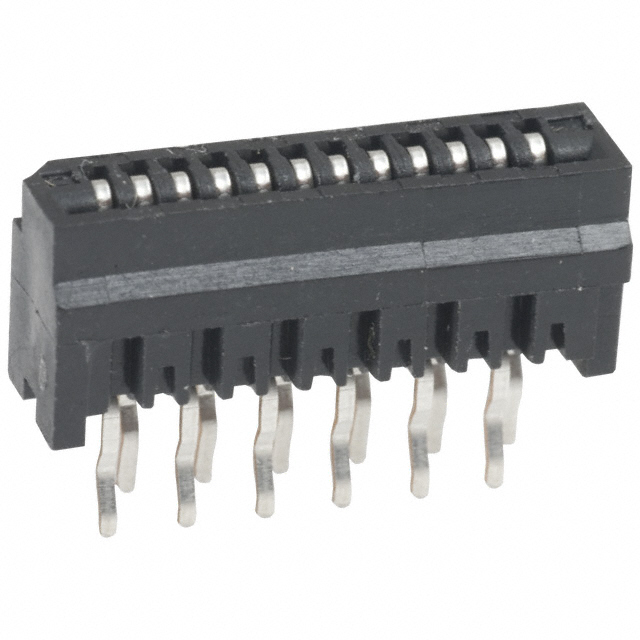

HLW12S-2C7LF _ FFC, FPC (Flat Flexible) Connector Assemblies_FFC, FPC (Flat Flexible) Connectors_Connectors, Interconnects

Part Number	HLW12S-2C7LF
Manufacturer	Storage & Server IO (Amphenol Communications Solutions)
Other Part Numbers	609-1825-ND HLW12S2C7LF 609-1825 2266-HLW12S-2C7LF
Description	CONN FFC FPC VERT 12POS 1MM PCB
Detailed Description	12 Position FFC, FPC Connector Contacts, Vertical - 1 Sided 0.039" (1.00mm) Through Hole
Manufacturer Standard Lead Time	12 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects FFC, FPC (Flat Flexible) Connectors FFC, FPC (Flat Flexible) Connector Assemblies
Manufacturer		Storage & Server IO (Amphenol Communications Solutions)
Series		HLW-S
Packaging		Tray
Part Status		Active
Contact Finish		Tin
Voltage Rating		100V
Current Rating (Amps)		1A
Mounting Type		Through Hole
Number of Positions		12
Pitch		0.039" (1.00mm)
Operating Temperature		-55°C ~ 85°C
Termination		Kinked Pin
Height Above Board		0.232" (5.90mm)
Material Flammability Rating		UL94 V-0
Contact Material		Phosphor Bronze
FFC, FCB Thickness		0.33mm
Housing Material		Polybutylene Terephthalate (PBT), Glass Filled
Housing Color		Black
Mating Cycles		30
Flat Flex Type		FFC, FPC
Connector/Contact Type		Contacts, Vertical - 1 Sided

RESOURCE TYPE		LINK
Datasheets		HLW12S-2C7LF

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4051
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Affected
RoHS Status		RoHS Compliant

Can ship immediately.
