HI5630/8CN _ Analog to Digital Converters (ADC)_Data Acquisition_Integrated Circuits (ICs)

Part Number	HI5630/8CN
Manufacturer	Intersil
Other Part Numbers	2156-HI5630/8CN-600010-ND 2156-HI5630/8CN-600010
Description	TRIPLE 8-BIT, 80MSPS A/D CONVERT
Detailed Description	8 Bit Analog to Digital Converter 3 Input 3 Pipelined 64-MQFP (14x14)

Category		Integrated Circuits (ICs) Data Acquisition Analog to Digital Converters (ADC)
Manufacturer		Intersil
Series
Packaging		Bulk
Part Status		Active

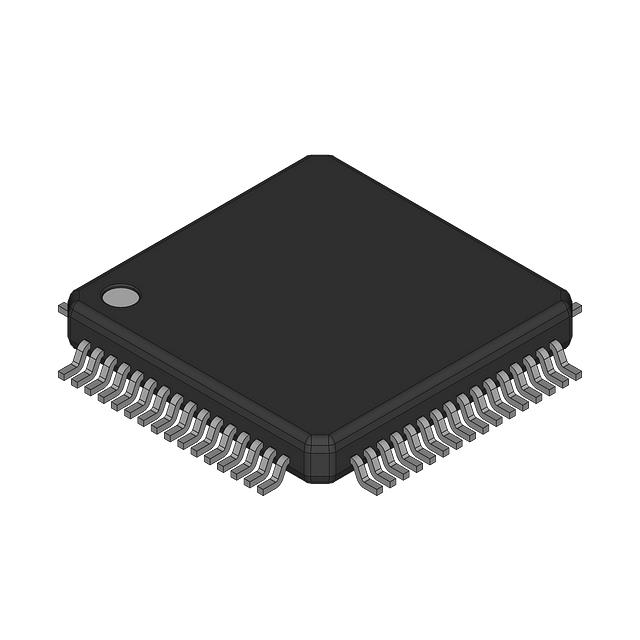

Package / Case		64-BQFP
Mounting Type		Surface Mount
Number of Bits		8
Configuration		S/H-ADC
Data Interface		Parallel
Reference Type		External, Internal
Operating Temperature		0°C ~ 70°C
Voltage - Supply, Analog		4.75V ~ 5.25V
Voltage - Supply, Digital		4.75V ~ 5.25V
Sampling Rate (Per Second)		80M
Input Type		Differential, Single Ended
Number of Inputs		3
Supplier Device Package		64-MQFP (14x14)
Architecture		Pipelined
Ratio - S/H:ADC		1:1
Number of A/D Converters		3

RESOURCE TYPE		LINK

ATTRIBUTE		DESCRIPTION
Moisture Sensitivity Level (MSL)		Vendor Undefined
REACH Status		REACH Affected
