HI4P0548-5

HI4P0548-5

Part Number	HI4P0548-5
Manufacturer	Harris Corporation
Other Part Numbers	2156-HI4P0548-5-ND 2156-HI4P0548-5 HARHARHI4P0548-5
Description	IC MUX 8:1 1.8KOHM 20PLCC
Detailed Description	1 Circuit IC Switch 8:1 1.8kOhm 20-PLCC (9x9)

Product Attributes

Category		Integrated Circuits (ICs) Interface Analog Switches, Multiplexers, Demultiplexers
Manufacturer		Harris Corporation
Series
Packaging		Bulk
Part Status		Active

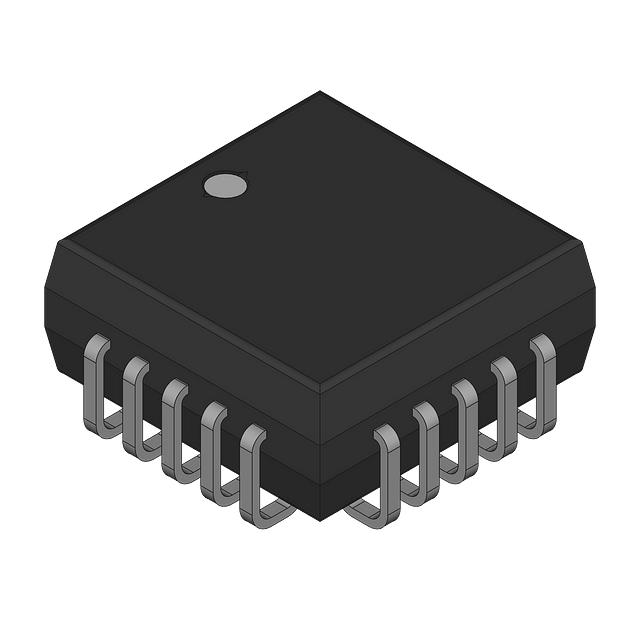

Package / Case		20-LCC (J-Lead)
Mounting Type		Surface Mount
Operating Temperature		0°C ~ 75°C (TA)
On-State Resistance (Max)		1.8kOhm
Supplier Device Package		20-PLCC (9x9)
Voltage - Supply, Single (V+)		15V
Voltage - Supply, Dual (V±)		±15V
Multiplexer/Demultiplexer Circuit		8:1
Channel-to-Channel Matching (ΔRon)		126Ohm
Switch Time (Ton, Toff) (Max)		300ns, 300ns (Typ)
Channel Capacitance (CS(off), CD(off))		10pF, 3pF
Current - Leakage (IS(off)) (Max)		30pA (Typ)
Number of Circuits		1

Documents & Media

RESOURCE TYPE		LINK

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Affected
RoHS Status		RoHS non-compliant
