HI1-0524/883

HI1-0524/883

Part Number	HI1-0524/883
Manufacturer	Harris Corporation
Other Part Numbers	2156-HI1-0524/883-ND HARHARHI1-0524/883 2156-HI1-0524/883
Description	IC SW 4PST-NOX1 700OHM 18CERDIP
Detailed Description	1 Circuit IC Switch 4:1 700Ohm (Typ) 18-CERDIP

Product Attributes

Category		Integrated Circuits (ICs) Interface Analog Switches, Multiplexers, Demultiplexers
Manufacturer		Harris Corporation
Series
Packaging		Bulk
Part Status		Active

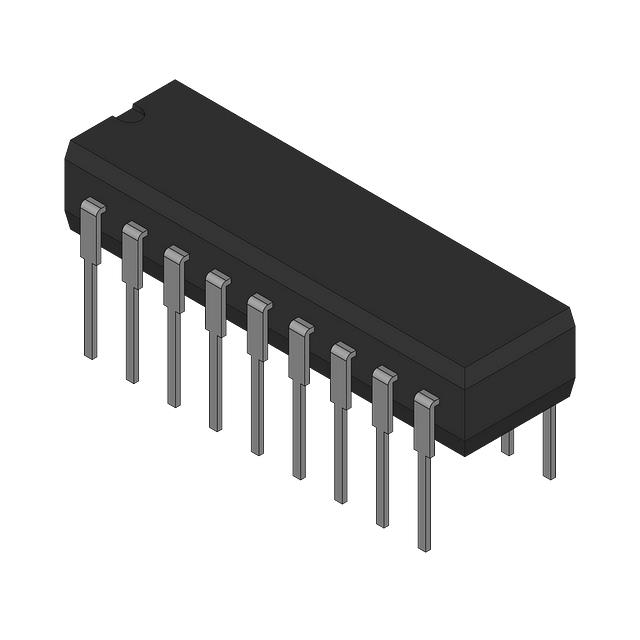

Package / Case		18-CDIP (0.300", 7.62mm)
Mounting Type		Through Hole
Operating Temperature		-55°C ~ 125°C
On-State Resistance (Max)		700Ohm (Typ)
-3db Bandwidth		8MHz
Supplier Device Package		18-CERDIP
Voltage - Supply, Single (V+)		33V
Crosstalk		-65dB @ 10MHz
Multiplexer/Demultiplexer Circuit		4:1
Switch Time (Ton, Toff) (Max)		300ns, 250ns
Channel Capacitance (CS(off), CD(off))		4pF, 10pF
Current - Leakage (IS(off)) (Max)		200pA (Typ)
Number of Circuits		1

Documents & Media

RESOURCE TYPE		LINK

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		3 (168 Hours)
REACH Status		REACH Affected
RoHS Status		RoHS non-compliant
