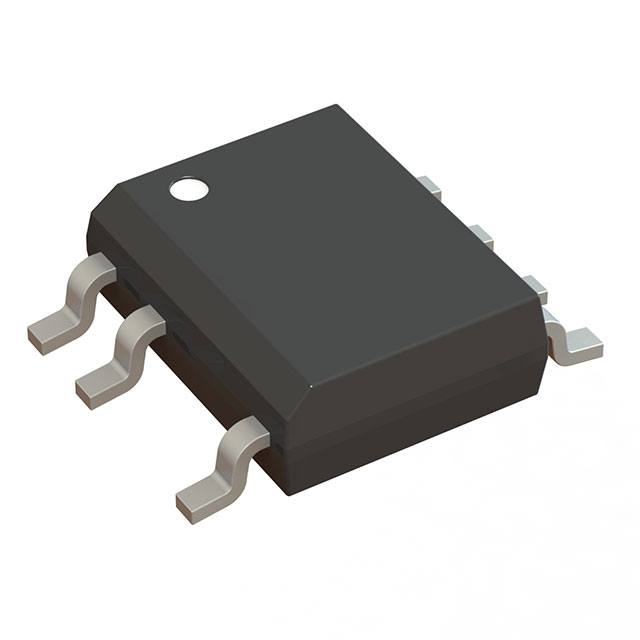

HF500GS-15

HF500GS-15

Part Number	HF500GS-15
Manufacturer	MPS (Monolithic Power Systems)
Other Part Numbers	HF500GS-15-ND HF500-15-ND HF500-15 HF500-15INACTIVE
Description	FULL-FEATURED FLYBACK REGULATOR
Detailed Description	Converter Offline Flyback Topology 25kHz 8-SOIC-7B
Datasheet	Datasheet

Product Attributes

Category		Integrated Circuits (ICs) Power Management (PMIC) AC DC Converters, Offline Switches
Manufacturer		MPS (Monolithic Power Systems)
Series
Packaging		Tube
Part Status		Active
Package / Case		8-SOIC (0.154", 3.90mm Width), 7 Leads
Mounting Type		Surface Mount
Operating Temperature		-40°C ~ 125°C (TJ)
Frequency - Switching		25kHz
Internal Switch(s)		Yes
Voltage - Breakdown		700V
Output Isolation		Isolated
Topology		Flyback
Voltage - Supply (Vcc/Vdd)		12.5V ~ 24V
Supplier Device Package		8-SOIC-7B
Fault Protection		Over Load, Over Temperature, Over Voltage, Short Circuit
Control Features		Soft Start
Power (Watts)		1.5 W

Documents & Media

RESOURCE TYPE		LINK
Datasheets		HF500GS-15
Datasheets		HF500-15
Datasheets		MonolithicPower Systems Environmental Compliance Declaration
Datasheets		Tube Pkg Retraction 15/Mar/2019

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		6 (Time on Label)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
