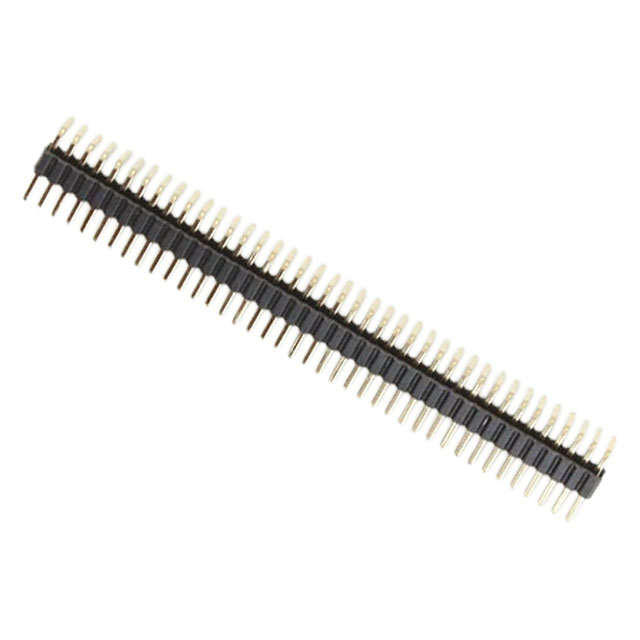

HDR127MET40M-G-RA-TH _ Headers, Male Pins_Rectangular Connectors_Connectors, Interconnects

Part Number	HDR127MET40M-G-RA-TH
Manufacturer	Chip Quik, Inc.
Other Part Numbers	HDR127MET40M-G-RA-TH-ND
Description	CONN HEADER R/A 40POS 1.27MM
Detailed Description	Connector Header Through Hole, Right Angle 40 position 0.050" (1.27mm)
Manufacturer Standard Lead Time	4 weeks

Category		Connectors, Interconnects Rectangular Connectors Headers, Male Pins
Manufacturer		Chip Quik, Inc.
Series		Proto-Advantage
Packaging		Bulk
Part Status		Active
Connector Type		Header, Breakaway
Mounting Type		Through Hole, Right Angle
Number of Positions		40
Number of Rows		1
Style		Board to Board
Contact Type		Male Pin
Fastening Type		Push-Pull
Number of Positions Loaded		All
Termination		Solder
Pitch - Mating		0.050" (1.27mm)
Contact Finish - Mating		Gold
Contact Finish - Post		Gold
Contact Shape		Square
Contact Length - Post		0.071" (1.80mm)
Insulation Height		0.083" (2.10mm)
Shrouding		Unshrouded
Contact Length - Mating		0.118" (3.00mm)

RESOURCE TYPE		LINK
Datasheets		HDR127MET40M-G-RA-TH

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4040
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

Can ship immediately.
