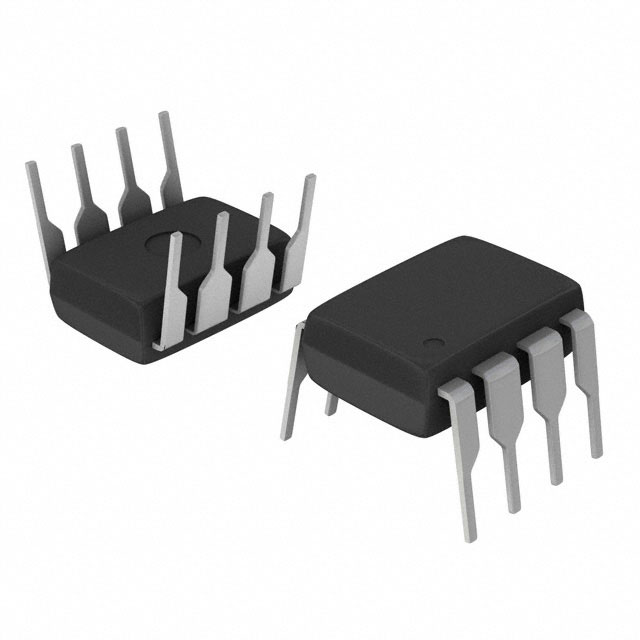

HCPL-4200

HCPL-4200

Part Number	HCPL-4200
Manufacturer	Broadcom
Other Part Numbers	516-1149-5-ND 516-1149-5
Description	OPTOISO 3.75KV RECEIVER 8DIP
Detailed Description	Optoisolator Current Loop Receiver 3750Vrms 1 Channel 8-DIP
Manufacturer Standard Lead Time	20 weeks
Datasheet	Datasheet

Product Attributes

Category		Isolators Special Purpose Isolators
Manufacturer		Broadcom
Series
Packaging		Tube
Part Status		Active
Package / Case		8-DIP (0.300", 7.62mm)
Mounting Type		Through Hole
Type		Current Loop Receiver
Operating Temperature		-40°C ~ 85°C
Voltage - Supply		4.5V ~ 20V
Input Type		DC
Current - Output / Channel		25mA
Voltage - Isolation		3750Vrms
Approval Agency		CSA, UR
Supplier Device Package		8-DIP
Rise / Fall Time (Typ)		55ns, 15ns
Common Mode Transient Immunity (Min)		1kV/µs
Propagation Delay tpLH / tpHL (Max)		1.6µs, 1µs
Number of Channels		1

Documents & Media

RESOURCE TYPE		LINK
Datasheets		Marking/Labeling Revision B 14/Jan/2014
Datasheets		Multiple Devices Marking/Labeling 07/Aug/2013

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.49.8000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
