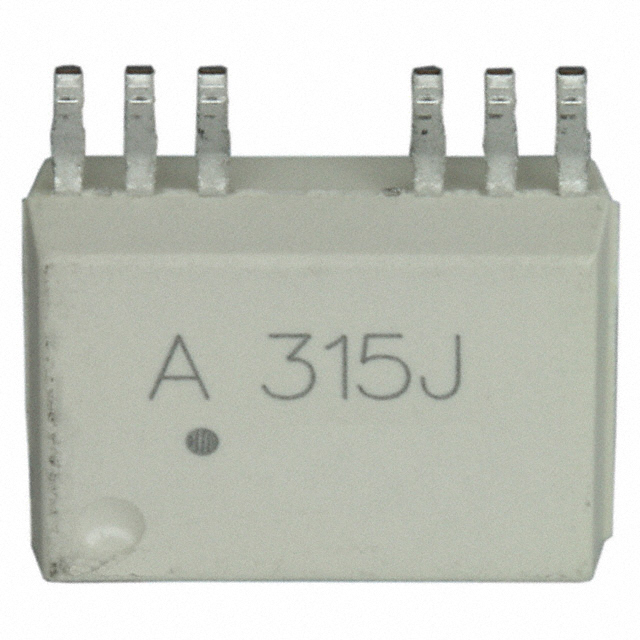

HCPL-315J-000E _ Isolators - Gate Drivers_Isolators

Part Number	HCPL-315J-000E
Manufacturer	Broadcom
Other Part Numbers	516-1673-5-ND HCPL315J000E 516-1673-5
Description	OPTOISO 5KV 2CH GATE DVR 16SO
Detailed Description	600mA Gate Driver Optical Coupling 5000Vrms 2 Channel 16-SO
Manufacturer Standard Lead Time	30 weeks
Datasheet	Datasheet

Category		Isolators Isolators - Gate Drivers
Manufacturer		Broadcom
Series
Packaging		Tube
Part Status		Active
Package / Case		16-SOIC (0.295", 7.50mm Width), 12 Leads
Mounting Type		Surface Mount
Operating Temperature		-40°C ~ 100°C
Voltage - Forward (Vf) (Typ)		1.6V
Current - Peak Output		600mA
Technology		Optical Coupling
Current - Output High, Low		500mA, 500mA
Voltage - Isolation		5000Vrms
Approval Agency		CSA, IEC/EN/DIN, UR
Supplier Device Package		16-SO
Rise / Fall Time (Typ)		100ns, 100ns
Common Mode Transient Immunity (Min)		15kV/µs
Propagation Delay tpLH / tpHL (Max)		500ns, 500ns
Pulse Width Distortion (Max)		300ns
Number of Channels		2
Current - DC Forward (If) (Max)		25 mA
Voltage - Output Supply		15V ~ 30V

RESOURCE TYPE		LINK
Datasheets		Marking/Labeling Revision B 14/Jan/2014
Datasheets		Multiple Devices Marking/Labeling 07/Aug/2013

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.49.8000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
