Part Number	HCPL-2612
Manufacturer	Broadcom
Other Part Numbers	516-1147-5-ND 516-1147-5 2832-HCPL-2612

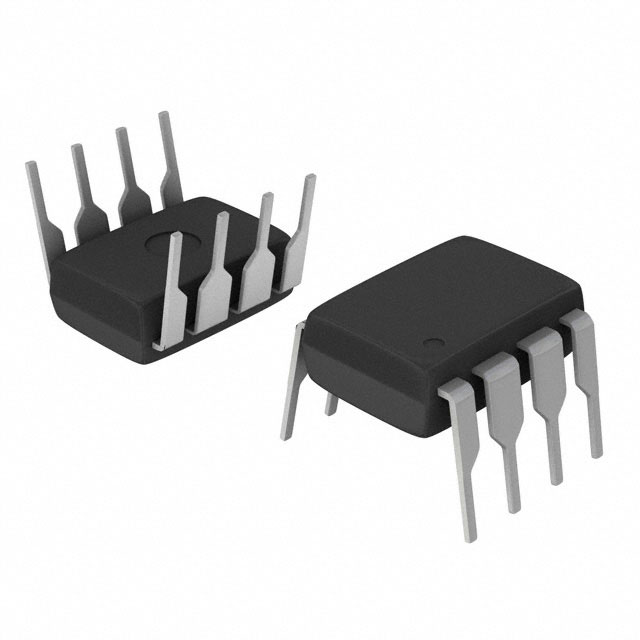

Description	OPTOISO 3.75KV LINE RX 8DIP
Detailed Description	Optoisolator Line Receiver 3750Vrms 1 Channel 8-DIP
Manufacturer Standard Lead Time	20 weeks
Datasheet	Datasheet

Category		Isolators Special Purpose Isolators
Manufacturer		Broadcom
Series
Packaging		Tube
Part Status		Active
Package / Case		8-DIP (0.300", 7.62mm)
Mounting Type		Through Hole
Type		Line Receiver
Operating Temperature		-40°C ~ 85°C
Voltage - Supply		4.5V ~ 5.5V
Input Type		AC, DC
Current - Output / Channel		50mA
Voltage - Isolation		3750Vrms
Approval Agency		CSA, UR
Supplier Device Package		8-DIP
Rise / Fall Time (Typ)		24ns, 10ns
Common Mode Transient Immunity (Min)		3.5kV/µs
Propagation Delay tpLH / tpHL (Max)		75ns, 75ns
Number of Channels		1
Current - DC Forward (If) (Max)		60 mA
Voltage - Forward (Vf) (Typ)		2.3 V

RESOURCE TYPE		LINK
Datasheets		Marking/Labeling Revision B 14/Jan/2014
Datasheets		Multiple Devices Marking/Labeling 07/Aug/2013

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.49.8000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
