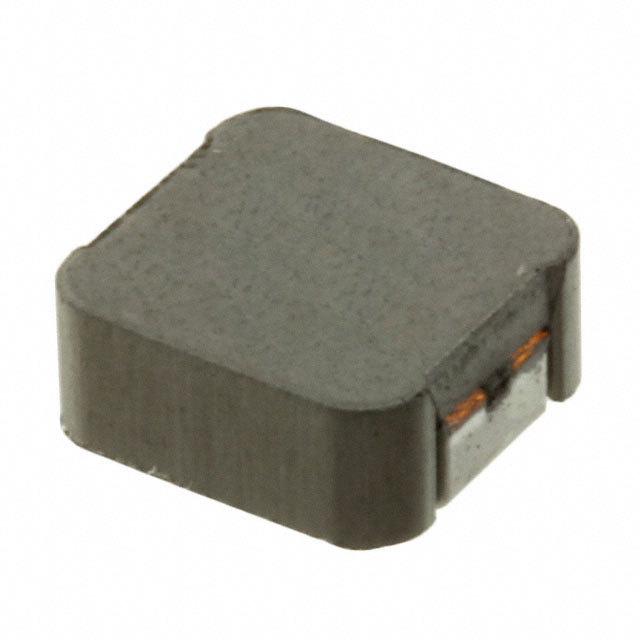

HA72E-06R10LFTR13

Part Number
HA72E-06R10LFTR13
Manufacturer TT Electronics/BI Magnetics
Other Part Numbers
987-1638-1-ND
987-1638-6
987-1638-1
987-1638-2
Description FIXED IND 100NH 26.2A 1.7 MOHM
Detailed Description 100 nH Unshielded Molded Inductor 26.2 A 1.7mOhm Max 2-SMD

Product Attributes

Category
Manufacturer TT Electronics/BI Magnetics
Series
HA72E-06
Packaging
Cut Tape (CT)
Part Status Discontinued
Tolerance ±20%
Package / Case 2-SMD
Size / Dimension 0.285" L x 0.268" W (7.23mm x 6.80mm)
Mounting Type Surface Mount
Shielding Unshielded
Type Molded
Operating Temperature -40°C ~ 155°C
DC Resistance (DCR) 1.7mOhm Max
Ratings AEC-Q200
Current - Saturation (Isat) 45A
Inductance Frequency - Test 100 kHz
Height - Seated (Max) 0.118" (3.00mm)
Inductance 100 nH
Current Rating (Amps) 26.2 A

Documents & Media

RESOURCE TYPE LINK

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8504.50.4000
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected

Discontinued

This product is no longer for sale.
