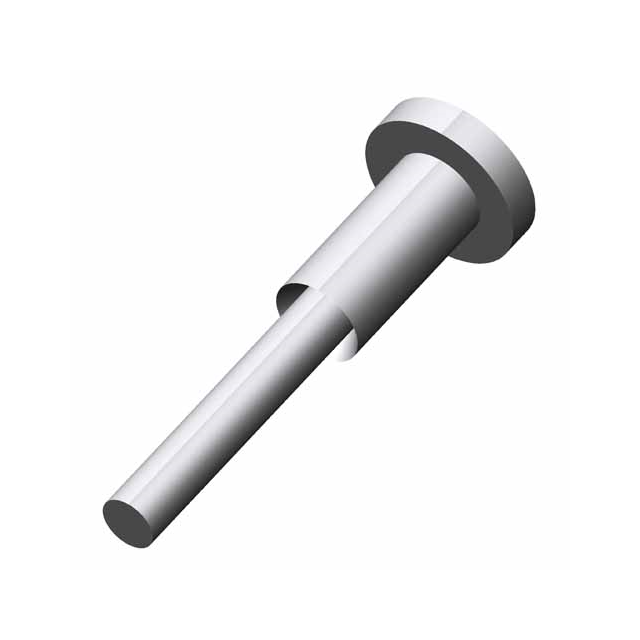

H2106B01

H2106B01

Part Number	H2106B01
Manufacturer	Harwin
Other Part Numbers	H2106B01-ND 3937-H2106B01
Description	TERMINAL PIN
Detailed Description	PC Pin Terminal Connector Through Hole Tin
Manufacturer Standard Lead Time	10 weeks
Datasheet	Datasheet

Product Attributes

Category		Connectors, Interconnects Terminals PC Pin, Single Post Connectors
Manufacturer		Harwin
Series
Packaging		Bulk
Part Status		Active
Contact Finish		Tin
Mounting Type		Through Hole
Insulation		Non-Insulated
Board Thickness		0.094" (2.39mm)
Terminal Type		PC Pin
Flange Diameter		0.094" (2.39mm)
Length - Overall		0.305" (7.75mm)
Termination		Solder
Mounting Hole Diameter		0.052" ~ 0.056" (1.32mm ~ 1.42mm)
Contact Material		Brass
Terminal Style		Single End
Pin Size - Below Flange		0.032" (0.81mm) Dia
Length - Below Flange		0.285" (7.24mm)

Documents & Media

RESOURCE TYPE		LINK
Datasheets		H2106B01
Datasheets		D3080-05
Datasheets		Harwin REACH

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.90.4000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
