H11A5S _ Transistor, Photovoltaic Output Optoisolators_Optoisolators_Isolators

Part Number	H11A5S
Manufacturer	LITEON
Other Part Numbers	H11A5SLT-ND H11A5SLT
Description	OPTOISO 5KV TRANS W/BASE 6SMD
Detailed Description	Optoisolator Transistor with Base Output 5000Vrms 1 Channel 6-SMD
Datasheet	Datasheet

Category		Isolators Optoisolators Transistor, Photovoltaic Output Optoisolators
Manufacturer		LITEON
Series		H11AX
Packaging		Bag
Part Status		Obsolete

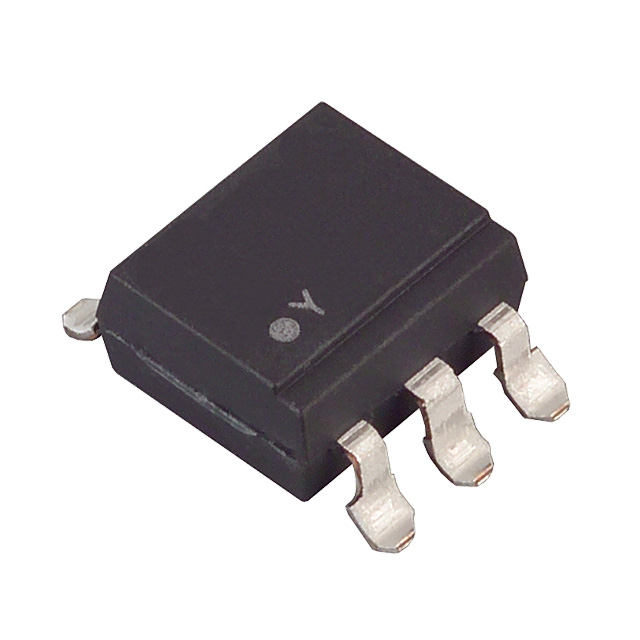

Package / Case		6-SMD, Gull Wing
Output Type		Transistor with Base
Mounting Type		Surface Mount
Operating Temperature		-55°C ~ 100°C
Voltage - Forward (Vf) (Typ)		1.2V
Input Type		DC
Current - Output / Channel		150mA
Voltage - Isolation		5000Vrms
Current Transfer Ratio (Min)		30% @ 10mA
Vce Saturation (Max)		400mV
Supplier Device Package		6-SMD
Voltage - Output (Max)		30V
Rise / Fall Time (Typ)		2.8µs, 4.5µs
Number of Channels		1
Current - DC Forward (If) (Max)		60 mA

RESOURCE TYPE		LINK

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.49.8000
Moisture Sensitivity Level (MSL)		1 (Unlimited)

This product is no longer manufactured.
