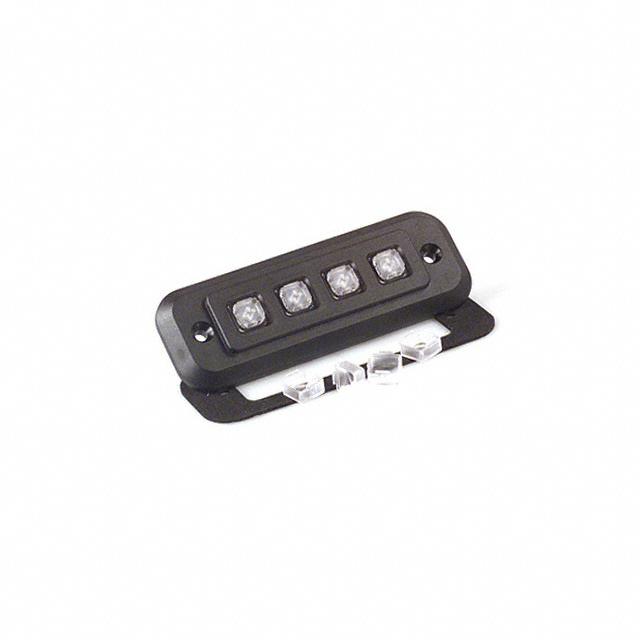

GSRG040203 _ Keypad Switches_Switches

Part Number	GSRG040203
Manufacturer	Storm Interface
Other Part Numbers	MGR1568-ND MGR1568-NDR GSRG040202 MGR1568 GSRG040201
Description	SWITCH KEYPAD 4KEY 0.05A 24V
Detailed Description	Keypad Switch 4 Transparent Key Cap Keys Conductive Rubber Contacts Matrix Output Illuminated - Red/Green 0.05A @ 24VDC
Datasheet	Datasheet

Category		Switches Keypad Switches
Manufacturer		Storm Interface
Series		GFX Illuminator
Packaging		Bulk
Part Status		Obsolete
Output Type		Matrix
Number of Keys		4
Mounting Type		Panel Mount, Front or Rear
Switch Type		Conductive Rubber
Operating Temperature		-10°C ~ 75°C
Termination Style		Pin Header
Legend		Customizable (Sold Separate)
Illumination Voltage (Nominal)		1.8, 2.2 VDC
Illumination		Illuminated - Red/Green
Contact Rating @ Voltage		0.05A @ 24VDC
Ingress Protection		IP54 - Dust Protected, Water Resistant
Panel Cutout Dimensions		Rectangular - 82.50mm x 25.50mm
Legend Type		Interchangeable
Key Type		Transparent Key Cap
Matrix (Columns x Rows)		1 x 4
Key Color		Transparent

RESOURCE TYPE		LINK
Datasheets		GSRG040203

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8537.10.9170
Moisture Sensitivity Level (MSL)		Not Applicable
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

This product is no longer manufactured.
