Part Number |
GS02MSV1KE(T&R)
|
---|---|
Manufacturer | Littelfuse / C&K |
Other Part Numbers |
CKN9024TR-ND
GS02MSV1KETR-ND
GS02MSV1KETR
GS02MSV1KE
GS02MSV1KECT-ND
CKN9024CT
GS02MSV1KECT
CKN9024TR
GS02MSV1KE-ND
*GS02MSV1KE(T&R)
|

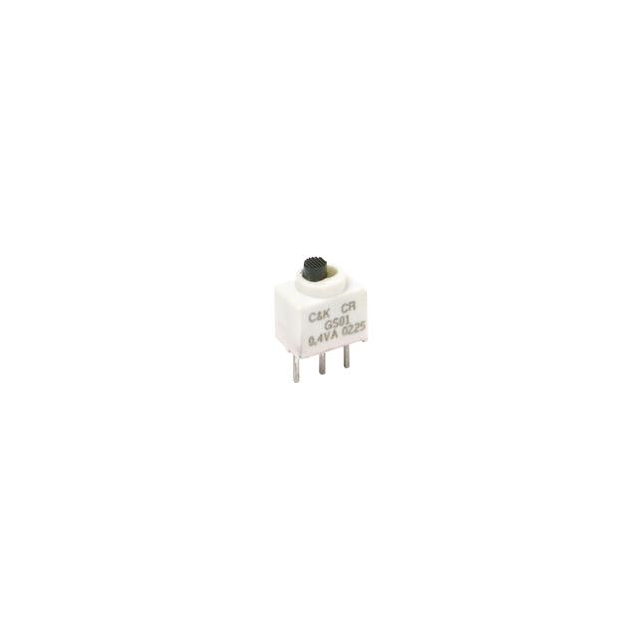

Description | SWITCH SLIDE SPST 0.4VA 20V |
Detailed Description | Slide Switch SPST Surface Mount |
Category | ||
---|---|---|
Manufacturer | Littelfuse / C&K | |
Series |
GS
|
|
Packaging |
Tape & Reel (TR)
|
|
Part Status | Obsolete | |
Features | Epoxy Sealed Terminals | |
Contact Finish | Gold | |
Current Rating (Amps) | 0.4VA (AC/DC) | |
Mounting Type | Surface Mount | |
Circuit | SPST | |
Switch Function | On-Off | |
Operating Temperature | -30°C ~ 85°C | |
Termination Style | Gull Wing | |
Actuator Length | 1.27mm | |
Actuator Type | Standard | |
Contact Material | Beryllium Copper | |
Contact Timing | Not Specified | |
Voltage Rating - AC | 20 V | |
Voltage Rating - DC | 20 V |
RESOURCE TYPE | LINK |
---|
ATTRIBUTE | DESCRIPTION | |
---|---|---|
ECCN | EAR99 | |
HTSUS | 8536.50.9050 | |
Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
REACH Status | REACH Unaffected | |
RoHS Status | RoHS non-compliant |
