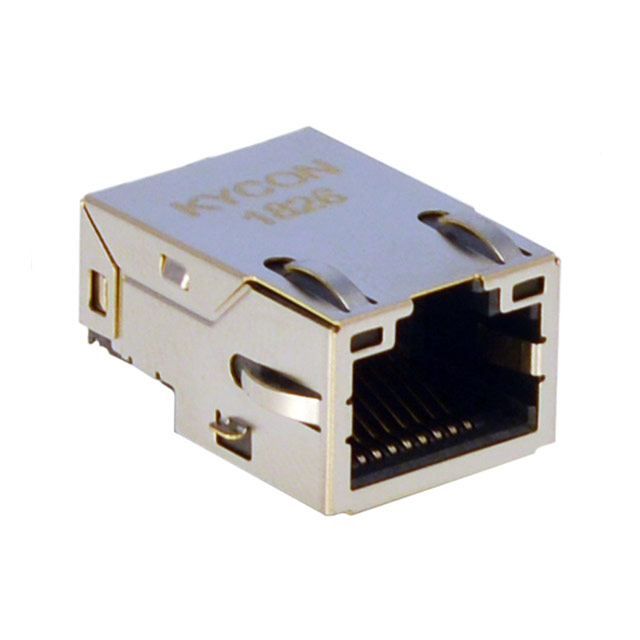

GLPLX-SMT-188S7-QQ-Y/G _ Modular Connector Jacks With Magnetics_Modular Connectors_Connectors, Interconnects

Part Number	GLPLX-SMT-188S7-QQ-Y/G
Manufacturer	Kycon
Other Part Numbers	2092-GLPLX-SMT-188S7-QQ-Y/G-ND 2092-GLPLX-SMT-188S7-QQ-Y/G
Description	CONN JACK 1PORT 1000 BASE-T SMD
Detailed Description	1 Port JackBoard Edge, Surface Mount 10/100/1000 Base-T, AutoMDIX
Manufacturer Standard Lead Time	22 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects Modular Connectors Modular Connector Jacks With Magnetics
Manufacturer		Kycon
Series		GLPLX
Packaging		Tray
Part Status		Active
Features		Board Guide
Connector Type		Jack
Contact Finish		Gold
Mounting Type		Board Edge, Surface Mount
Shielding		Shielded, EMI Finger
Orientation		90° Angle (Right)
Operating Temperature		-40°C ~ 85°C
Applications		10/100/1000 Base-T, AutoMDIX
Termination		Solder
LED Color		Yellow - Green
Number of Cores per Jack		8
Height Above Board		0.348" (8.84mm)
Tab Direction		Up
Contact Finish Thickness		6.00µin (0.152µm)
Shield Material		Brass
Contact Material		Phosphor Bronze
Housing Material		Liquid Crystal Polymer (LCP)
Number of Ports		1
Number of Rows		1

RESOURCE TYPE		LINK
Datasheets		GLPLX-SMT-188S7-QQ-Y/G
Datasheets		GLPLX-SMT-188S7-QQ-Y/G Drawing Rev. 05/May/2019
Datasheets		GLPLX-SMT-188S7-QQ-Y/G Drawing

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4040
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
