GFC0848DWB74

Part Number
GFC0848DWB74
Manufacturer Delta Electronics / Fans
Other Part Numbers
603-2048-ND
603-2048

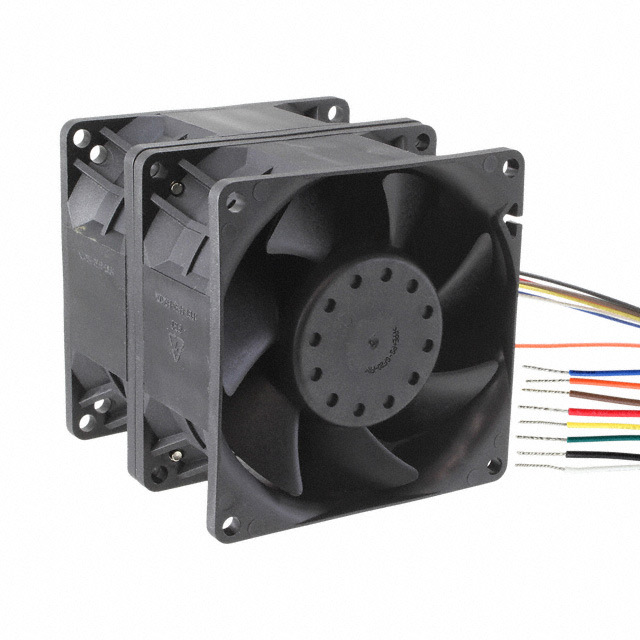

Description FAN AXIAL DUAL 80X80MM 48VDC
Detailed Description Fan Tubeaxial (Dual) 48VDC Square - 80mm L x 80mm H Ball 175.0 CFM (4.90m³/min) 4 Wire Leads per Fan
Datasheet Datasheet

Product Attributes

Category
Manufacturer Delta Electronics / Fans
Series
GFC
Packaging
Box
Part Status Obsolete
Features Locked Rotor Protection, PWM Control, Speed Sensor (Tach)
Voltage - Rated 48VDC
Size / Dimension Square - 80mm L x 80mm H
Bearing Type Ball
RPM 12500 Front, 11000 Rear
Air Flow 175.0 CFM (4.90m³/min)
Width 80.00mm
Weight 0.855 lb (387.82 g)
Operating Temperature 14 ~ 158°F (-10 ~ 70°C)
Termination 4 Wire Leads per Fan
Approval Agency CE, cURus, TUV
Ingress Protection IP51 - Dust Protected
Fan Type Tubeaxial (Dual)
Noise 76.5dB(A)
Static Pressure 4.470 in H2O (1113.4 Pa)
Power (Watts) 74.88 W

Documents & Media

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8414.59.6590
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant

Obsolete

This product is no longer manufactured.
