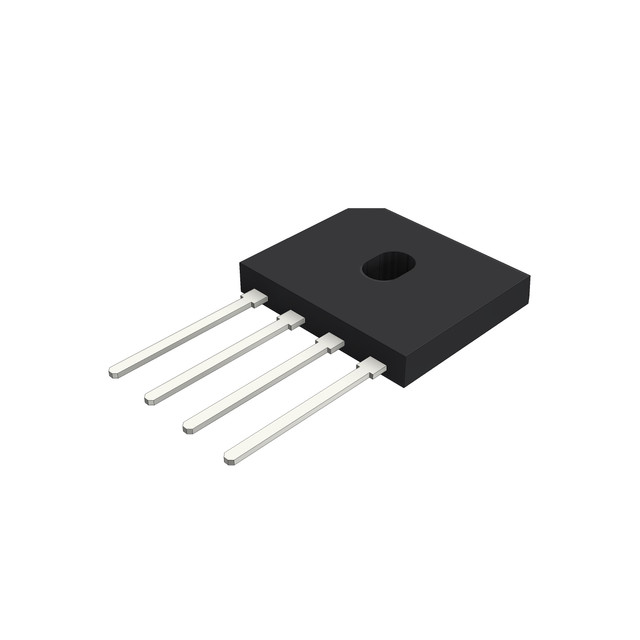

GBU2506F(HF)

Part Number
GBU2506F(HF)
Manufacturer HY Electronic (Cayman) Limited
Other Part Numbers
4024-GBU2506F(HF)-ND
4024-GBU2506F(HF)
Description GLASS PASSIVATED BRIDGE RECTIFIE
Detailed Description Bridge Rectifier Single Phase Standard 600 V Through Hole GBU

Product Attributes

Category
Manufacturer HY Electronic (Cayman) Limited
Series
GBU
Packaging
Tube
Part Status Active
Package / Case 4-SIP, GBU
Mounting Type Through Hole
Diode Type Single Phase
Operating Temperature -55°C ~ 150°C (TJ)
Technology Standard
Supplier Device Package GBU
Voltage - Peak Reverse (Max) 600 V
Current - Average Rectified (Io) 25 A
Voltage - Forward (Vf) (Max) @ If 950 mV @ 12.5 A
Current - Reverse Leakage @ Vr 5 µA @ 600 V

Documents & Media

RESOURCE TYPE LINK

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status Vendor Undefined
RoHS Status ROHS3 Compliant
