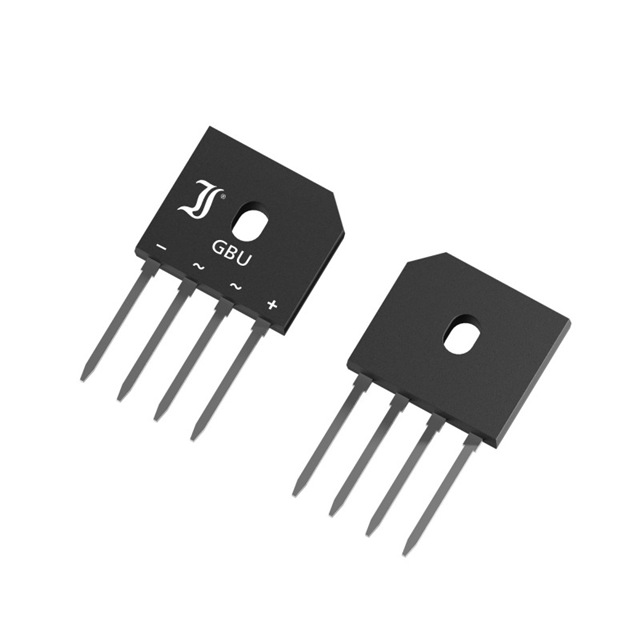

GBU12J-T

Part Number
GBU12J-T
Manufacturer Diotec Semiconductor
Other Part Numbers
2796-GBU12J-T-ND
2796-GBU12J-T
Description BRIDGE 1-PH GBU 600V 12A 150C
Detailed Description Bridge Rectifier Single Phase Standard 600 V Through Hole GBU
Datasheet Datasheet

Product Attributes

Category
Manufacturer Diotec Semiconductor
Series
Packaging
Tube
Part Status Active
Package / Case 4-SIP, GBU
Mounting Type Through Hole
Diode Type Single Phase
Operating Temperature -50°C ~ 150°C (TJ)
Technology Standard
Supplier Device Package GBU
Voltage - Peak Reverse (Max) 600 V
Current - Average Rectified (Io) 8.4 A
Voltage - Forward (Vf) (Max) @ If 1 V @ 12 A
Current - Reverse Leakage @ Vr 5 µA @ 600 V

Documents & Media

RESOURCE TYPE LINK
Datasheets GBU12J-T

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
HTSUS 8541.10.0000
Moisture Sensitivity Level (MSL) Not Applicable
REACH Status Vendor Undefined
RoHS Status Not applicable
