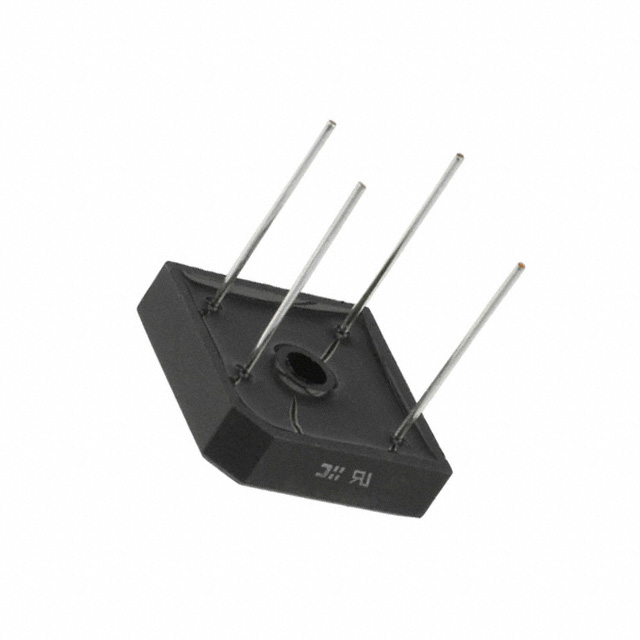

GBPC3506W

GBPC3506W

Part Number	GBPC3506W
Manufacturer	Sanyo Semiconductor/onsemi
Other Part Numbers	GBPC3506W-ND
Description	BRIDGE RECT 1P 600V 35A GBPC-W
Detailed Description	Bridge Rectifier Single Phase Standard 600 V Through Hole GBPC-W
Datasheet	Datasheet

Product Attributes

Category		Discrete Semiconductor Products Diodes Bridge Rectifiers
Manufacturer		Sanyo Semiconductor/onsemi
Series
Packaging		Tray
Part Status		Not For New Designs
Package / Case		4-Square, GBPC-W
Mounting Type		Through Hole
Diode Type		Single Phase
Operating Temperature		-55°C ~ 150°C (TJ)
Technology		Standard
Supplier Device Package		GBPC-W
Voltage - Peak Reverse (Max)		600 V
Current - Average Rectified (Io)		35 A
Voltage - Forward (Vf) (Max) @ If		1.1 V @ 17.5 A
Current - Reverse Leakage @ Vr		5 µA @ 600 V

Documents & Media

RESOURCE TYPE		LINK
Datasheets		GBPC3506W
Datasheets		Material Declaration GBPC3506W
Datasheets		onsemi REACH
Datasheets		onsemi RoHS
Datasheets		GBPCxx 16/May/2023
Datasheets		Logo 17/Aug/2017
Datasheets		Mult Devices 24/Oct/2017

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.10.0080
Moisture Sensitivity Level (MSL)		Not Applicable
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 273

Can ship immediately.

Not recommended for new design, minimums may apply.
