GBED204-2079B001C1AD _ Headers, Male Pins_Rectangular Connectors_Connectors, Interconnects

Part Number	GBED204-2079B001C1AD
Manufacturer	Greenconn Technology
Other Part Numbers	4217-GBED204-2079B001C1ADTR-ND 4217-GBED204-2079B001C1ADCT-ND 4217-GBED204-2079B001C1ADDKR-ND GBED204-2002B001C1AD 4217-GBED204-2079B001C1ADDKR 4217-GBED204-2002B001C1ADDKR 4217-GBED204-2079B001C1ADCT 4217-GBED204-2002B001C1ADCT-ND 4217-GBED204-2002B001C1ADTR-ND 4217-GBED204-2079B001C1ADTR 4217-GBED204-2002B001C1ADCT 4217-GBED204-2002B001C1ADTR 4217-GBED204-2002B001C1ADDKR-ND
Description	PITCH 1.27MM MALE SMC Q TYPE SMT

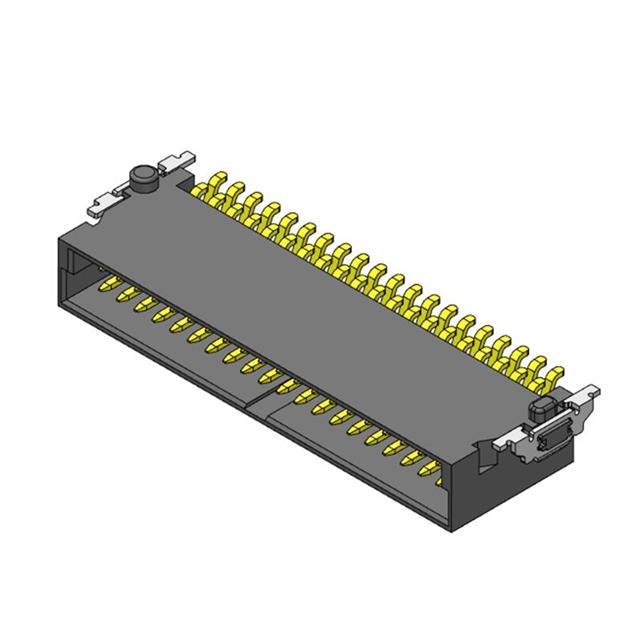

Detailed Description	Connector Header Surface Mount, Right Angle 40 position 0.050" (1.27mm)
Manufacturer Standard Lead Time	4 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects Rectangular Connectors Headers, Male Pins
Manufacturer		Greenconn Technology
Series		GBED204
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Features		Board Guide, Solder Retention
Connector Type		Header
Current Rating (Amps)		1.7A per Contact
Mounting Type		Surface Mount, Right Angle
Number of Positions		40
Number of Rows		2
Style		Board to Cable/Wire
Operating Temperature		-55°C ~ 125°C
Contact Type		Male Pin
Fastening Type		Push-Pull
Number of Positions Loaded		All
Termination		Solder
Material Flammability Rating		UL94 V-0
Contact Material		Phosphor Bronze
Insulation Color		Black
Pitch - Mating		0.050" (1.27mm)
Contact Shape		Square
Insulation Height		0.165" (4.20mm)
Shrouding		Shrouded - 4 Wall
Insulation Material		Liquid Crystal Polymer (LCP)
Row Spacing - Mating		0.050" (1.27mm)
Contact Length - Mating		0.157" (4.00mm)

RESOURCE TYPE		LINK
Datasheets		GBED204-2079B001C1AD

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4040
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		See Individual Parts
RoHS Status		ROHS3 Compliant
