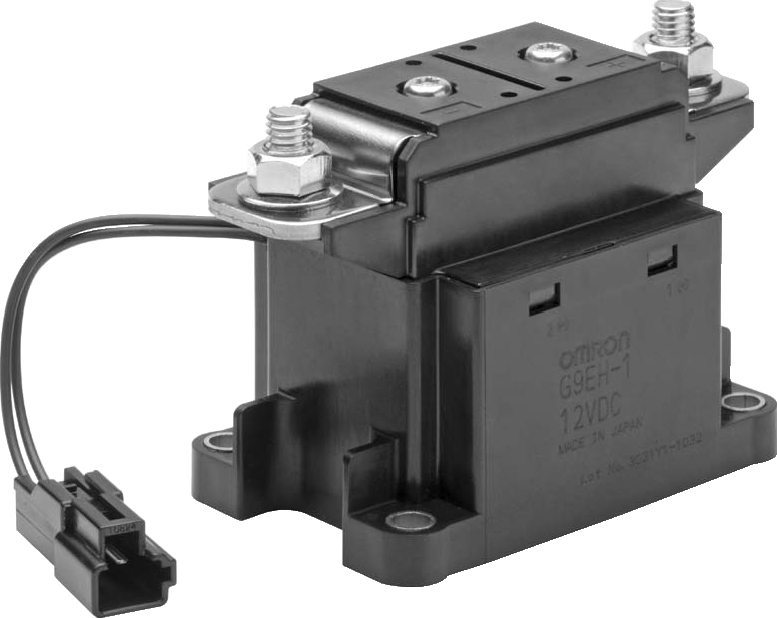

G9EH-1 DC24 _ Power Relays, Over 2 Amps_Relays

Part Number	G9EH-1 DC24
Manufacturer	Omron Electronic Components
Other Part Numbers	G9EH-1DC24-ND G9EH-1DC24 G9EH1DC24 G9EH-1 DC24-ND
Description	DC POWER RELAY
Detailed Description	General Purpose Relay SPST-NO (1 Form A) 24VDC Coil Chassis Mount

Category		Relays Power Relays, Over 2 Amps
Manufacturer		Omron Electronic Components
Series		G9EH-1
Packaging		Bulk
Part Status		Active
Mounting Type		Chassis Mount
Coil Voltage		24VDC
Operating Temperature		-45°C ~ 85°C
Termination Style		Screw Terminal
Relay Type		General Purpose
Coil Current		292 mA
Coil Type		Non Latching
Contact Form		SPST-NO (1 Form A)
Contact Rating (Current)		300 A
Switching Voltage		400VAC - Max
Must Release Voltage		1.92 VDC
Must Operate Voltage		32 VDC
Operate Time		50 ms
Release Time		30 ms
Load - Max Switching		120000VA

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.41.0050
Moisture Sensitivity Level (MSL)		1 (Unlimited)
RoHS Status		RoHS Compliant
