G88MP161028CREU _ Headers, Male Pins_Rectangular Connectors_Connectors, Interconnects

Part Number	G88MP161028CREU
Manufacturer	Amphenol ICC (Commercial Products)
Other Part Numbers	664-G88MP161028CREUTR-ND 664-G88MP161028CREUCT-ND 664-G88MP161028CREUDKR-ND 664-G88MP161028CREUDKRINACTIVE 664-G88MP161028CREUDKR 664-G88MP161028CREUCT 664-G88MP161028CREUTR

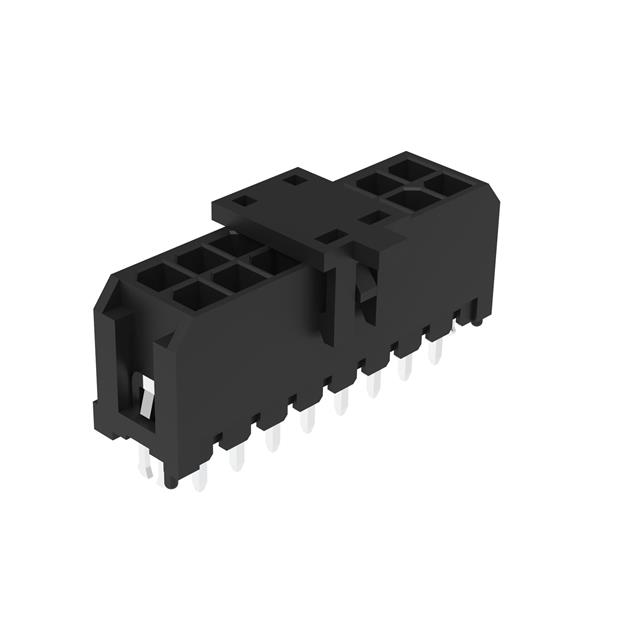

Description	MICRO POWER PLUS 2X8 BOARD MOUNT
Detailed Description	Connector Header Through Hole 16 position 0.118" (3.00mm)
Manufacturer Standard Lead Time	14 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects Rectangular Connectors Headers, Male Pins
Manufacturer		Amphenol ICC (Commercial Products)
Series		Micro Power
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Features		Board Guide, Board Lock
Connector Type		Header
Mounting Type		Through Hole
Number of Positions		16
Number of Rows		2
Style		Board to Cable/Wire
Contact Type		Male Pin
Fastening Type		Locking Ramp
Number of Positions Loaded		All
Termination		Solder
Material Flammability Rating		UL94 V-0
Contact Material		Copper Alloy
Insulation Color		Black
Pitch - Mating		0.118" (3.00mm)
Contact Finish - Mating		Tin
Contact Finish Thickness - Mating		100.0µin (2.54µm)
Contact Finish - Post		Tin
Contact Finish Thickness - Post		100.0µin (2.54µm)
Contact Shape		Square
Contact Length - Post		0.126" (3.20mm)
Insulation Height		0.390" (9.91mm)
Shrouding		Shrouded - 4 Wall
Insulation Material		Liquid Crystal Polymer (LCP)
Row Spacing - Mating		0.118" (3.00mm)

RESOURCE TYPE		LINK
Datasheets		G88MP161028CREU

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4040
Moisture Sensitivity Level (MSL)		1 (Unlimited)
RoHS Status		ROHS3 Compliant
