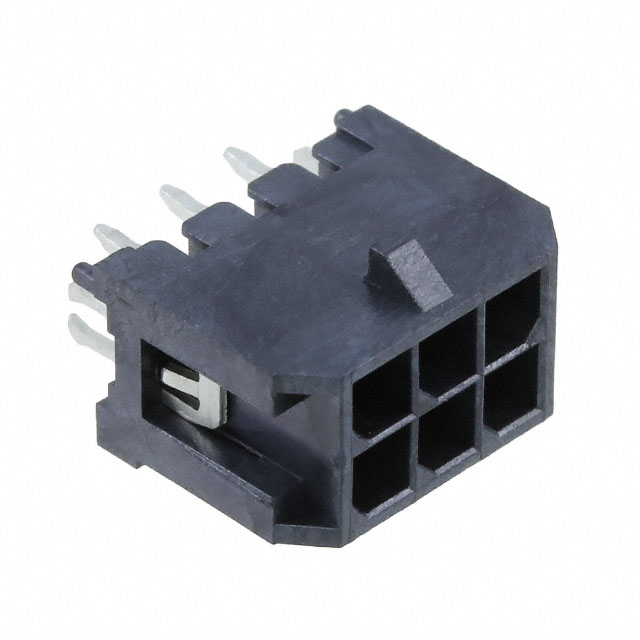

G88MP06102KEU _ Headers, Male Pins_Rectangular Connectors_Connectors, Interconnects

Part Number	G88MP06102KEU
Manufacturer	Amphenol ICC (Commercial Products)
Other Part Numbers	G88MP06102KEU-ND 2266-G88MP06102KEU
Description	CONN HEADER VERT 6POS 3MM
Detailed Description	Connector Header Through Hole 6 position 0.118" (3.00mm)
Manufacturer Standard Lead Time	14 weeks

Category		Connectors, Interconnects Rectangular Connectors Headers, Male Pins
Manufacturer		Amphenol ICC (Commercial Products)
Series		Micro Power
Packaging		Tray
Part Status		Active
Features		Board Lock
Connector Type		Header
Voltage Rating		250V
Current Rating (Amps)		Varies by Wire Gauge
Mounting Type		Through Hole
Number of Positions		6
Number of Rows		2
Style		Board to Cable/Wire
Operating Temperature		-40°C ~ 105°C
Contact Type		Male Pin
Fastening Type		Locking Ramp
Number of Positions Loaded		All
Termination		Kinked Pin, Solder
Material Flammability Rating		UL94 V-0
Contact Material		Copper Alloy
Insulation Color		Black
Pitch - Mating		0.118" (3.00mm)
Contact Finish - Mating		Tin
Contact Finish Thickness - Mating		100.0µin (2.54µm)
Contact Finish - Post		Tin
Contact Finish Thickness - Post		100.0µin (2.54µm)
Contact Shape		Square
Contact Length - Post		0.126" (3.20mm)
Insulation Height		0.390" (9.91mm)
Shrouding		Shrouded - 4 Wall
Insulation Material		Liquid Crystal Polymer (LCP)
Row Spacing - Mating		0.118" (3.00mm)

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4040
Moisture Sensitivity Level (MSL)		1 (Unlimited)
RoHS Status		RoHS Compliant
