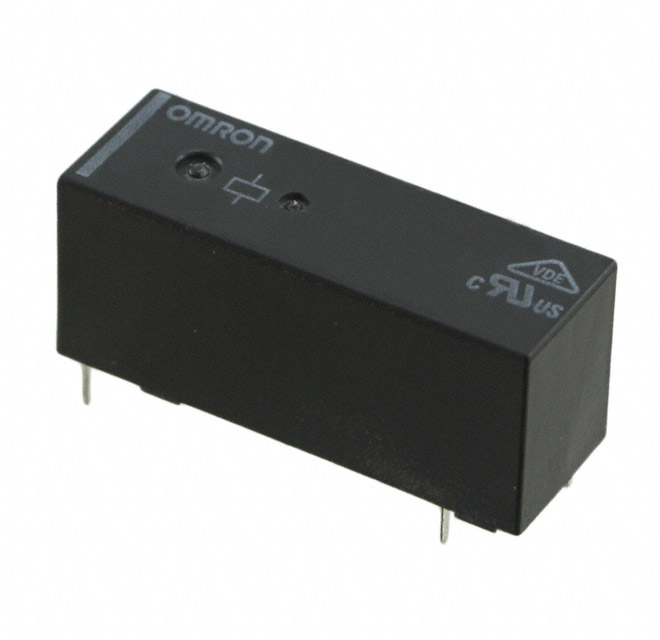

G6RL-14-ASI DC48

Part Number
G6RL-14-ASI DC48
Manufacturer Omron Electronic Components
Other Part Numbers
G6RL-14-ASIDC48-ND
G6RL-14-ASI DC48-ND
G6RL-14-ASIDC48
G6RL14ASIDC48
Description RELAY GEN PURPOSE SPDT 8A 48V
Detailed Description General Purpose Relay SPDT (1 Form C) 48VDC Coil Through Hole
Datasheet Datasheet

Product Attributes

Category
Manufacturer Omron Electronic Components
Series
G6RL
Packaging
Bulk
Part Status Obsolete
Mounting Type Through Hole
Coil Voltage 48VDC
Operating Temperature -40°C ~ 85°C
Termination Style PC Pin
Approval Agency cURus, VDE
Relay Type General Purpose
Coil Current 5 mA
Coil Type Non Latching
Seal Rating Sealed - Fully
Contact Material Silver Tin Indium (AgSnIn)
Contact Form SPDT (1 Form C)
Contact Rating (Current) 8 A
Switching Voltage 250VAC - Nom
Must Release Voltage 4.8 VDC
Must Operate Voltage 33.6 VDC
Operate Time 10 ms
Release Time 5 ms
Load - Max Switching 2000VA

Documents & Media

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8536.41.0020
Moisture Sensitivity Level (MSL) 1 (Unlimited)

Obsolete

This product is no longer manufactured.
