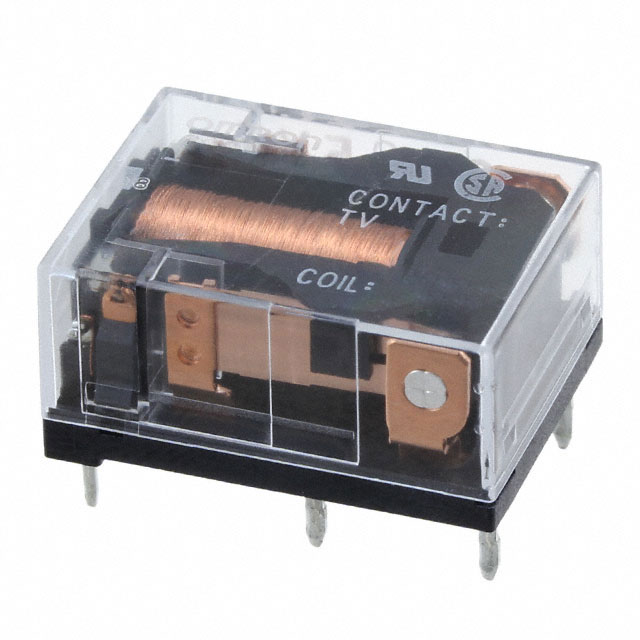

G6CU-2117P-US-DC24 _ Power Relays, Over 2 Amps_Relays

Part Number	G6CU-2117P-US-DC24
Manufacturer	Omron Electronic Components
Other Part Numbers	G6CU-2117P-USDC24-ND G6CU-2117P-USDC24 G6CU2117PUSDC24 G6CK1105C G6CU-2117P-US 24DC G6CU2117PUS24DC
Description	RELAY GEN PURPOSE DPST 8A 24V
Detailed Description	General Purpose Relay DPST-NO/NC (1 Form A, 1 Form B) 24VDC Coil Through Hole
Manufacturer Standard Lead Time	30 weeks
Datasheet	Datasheet

Category		Relays Power Relays, Over 2 Amps
Manufacturer		Omron Electronic Components
Series		G6C
Packaging		Bulk
Part Status		Active
Mounting Type		Through Hole
Coil Voltage		24VDC
Operating Temperature		-25°C ~ 70°C
Termination Style		PC Pin
Approval Agency		CSA, TUV, UR, VDE
Relay Type		General Purpose
Coil Current		8.3 mA
Coil Type		Latching, Single Coil
Seal Rating		Sealed - Flux Protection
Contact Material		Silver Alloy, Cadmium Free
Contact Form		DPST-NO/NC (1 Form A, 1 Form B)
Contact Rating (Current)		8 A
Switching Voltage		380VAC, 125VDC - Max
Must Operate Voltage		16.8 VDC
Operate Time		10 ms
Release Time		10 ms
Load - Max Switching		3040VA, 1000W

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.41.0020
Moisture Sensitivity Level (MSL)		Not Applicable
RoHS Status		RoHS Compliant
