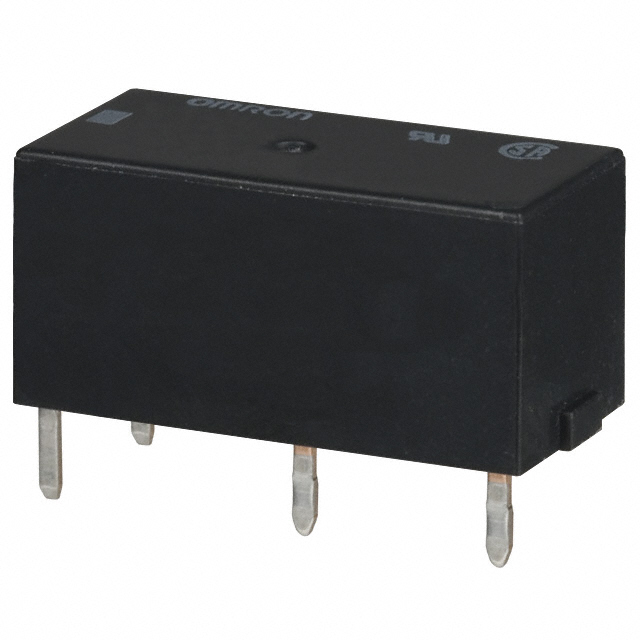

G6B-2214P-1-US-P6B DC24 _ Power Relays, Over 2 Amps_Relays

Part Number	G6B-2214P-1-US-P6B DC24
Manufacturer	Omron Electronic Components
Other Part Numbers	G6B-2214P-1-US-P6BDC24-ND G6B-2214P-1-US-P6B DC24-ND G6B-2214P-1-US-P6BDC24 G6B2214P1USP6BDC24
Description	RELAY GEN PURPOSE DPST 5A 24V
Detailed Description	General Purpose Relay DPST-NO (2 Form A) 24VDC Coil Socketable
Datasheet	Datasheet

Category		Relays Power Relays, Over 2 Amps
Manufacturer		Omron Electronic Components
Series		G6B
Packaging		Bulk
Part Status		Active
Mounting Type		Socketable
Coil Voltage		24VDC
Operating Temperature		-25°C ~ 70°C
Termination Style		Plug In
Approval Agency		CSA, TUV, UR
Relay Type		General Purpose
Coil Current		12.5 mA
Coil Type		Non Latching
Seal Rating		Sealed - Fully
Contact Material		Silver Alloy, Cadmium Free
Contact Form		DPST-NO (2 Form A)
Contact Rating (Current)		5 A
Switching Voltage		380VAC, 125VDC - Max
Must Release Voltage		2.4 VDC
Must Operate Voltage		19.2 VDC
Operate Time		10 ms
Release Time		10 ms
Load - Max Switching		1900VA, 625W

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.41.0020
Moisture Sensitivity Level (MSL)		1 (Unlimited)
RoHS Status		RoHS Compliant
