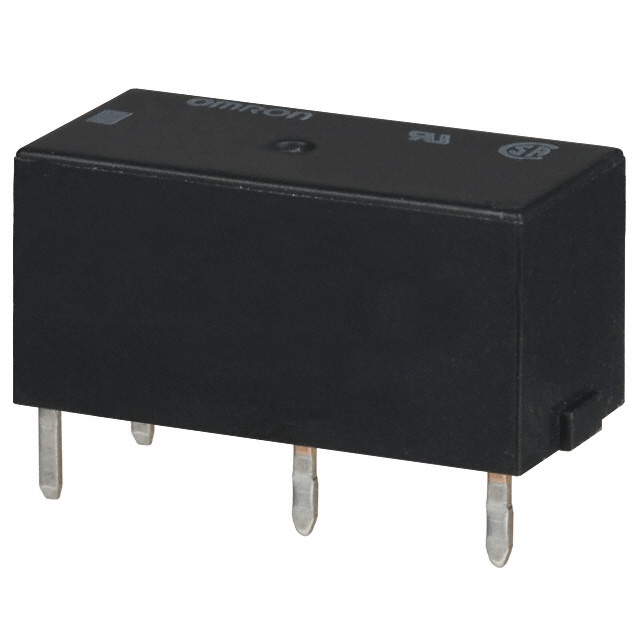

G6B-1114P-1-US DC9 _ Power Relays, Over 2 Amps_Relays

Part Number	G6B-1114P-1-US DC9
Manufacturer	Omron Electronic Components
Other Part Numbers	Z11002-ND G6B1114P1US9DC Z11002 G6B 1324M G6B1114P1USDC9 G6B-1114P-1-USDC9 G6B-1114P-1-USDC9-ND
Description	RELAY GEN PURPOSE SPST 5A 9V
Detailed Description	General Purpose Relay SPST-NO (1 Form A) 9VDC Coil Through Hole
Manufacturer Standard Lead Time	30 weeks
Datasheet	Datasheet

Category		Relays Power Relays, Over 2 Amps
Manufacturer		Omron Electronic Components
Series		G6B
Packaging		Bulk
Part Status		Active
Mounting Type		Through Hole
Coil Voltage		9VDC
Operating Temperature		-25°C ~ 70°C
Termination Style		PC Pin
Approval Agency		CSA, TUV, UR
Relay Type		General Purpose
Coil Current		22.2 mA
Coil Type		Non Latching
Seal Rating		Sealed - Fully
Contact Material		Silver Alloy, Cadmium Free
Contact Form		SPST-NO (1 Form A)
Contact Rating (Current)		5 A
Switching Voltage		380VAC, 125VDC - Max
Must Release Voltage		0.9 VDC
Must Operate Voltage		6.3 VDC
Operate Time		10 ms
Release Time		10 ms
Coil Resistance		405 Ohms
Load - Max Switching		1900VA, 625W

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.41.0020
Moisture Sensitivity Level (MSL)		Not Applicable
RoHS Status		RoHS Compliant
