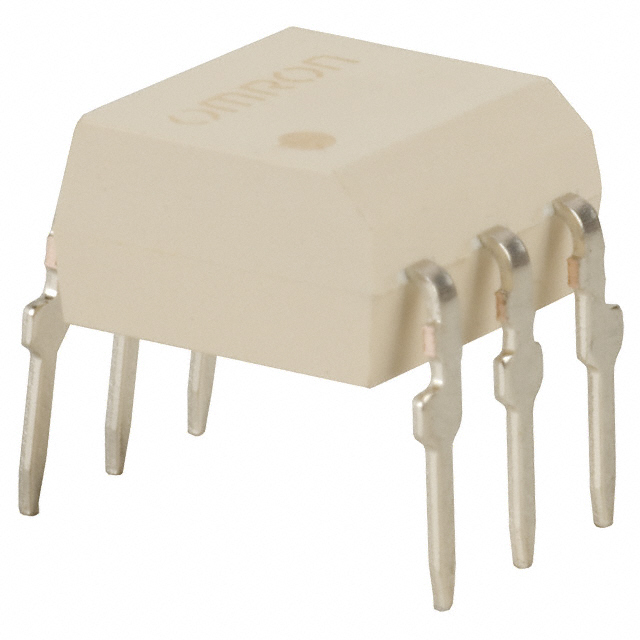

G3VM-601BY

G3VM-601BY

Part Number	G3VM-601BY
Manufacturer	Omron Electronic Components
Other Part Numbers	Z1040-ND G3VM601 G3VM601BY 3937-G3VM-601BY G2E 1720M Z1040
Description	SSR RELAY SPST-NO 100MA 0-600V
Detailed Description	Solid State SPST-NO (1 Form A) 6-DIP (0.300", 7.62mm)
Manufacturer Standard Lead Time	14 weeks
Datasheet	Datasheet

Product Attributes

Category		Relays Solid State Relays (SSR)
Manufacturer		Omron Electronic Components
Series		G3VM
Packaging		Tube
Part Status		Active
Package / Case		6-DIP (0.300", 7.62mm)
Output Type		AC, DC
Mounting Type		Through Hole
Voltage - Input		1.15VDC
Circuit		SPST-NO (1 Form A)
Termination Style		PC Pin
Load Current		100 mA
Supplier Device Package		6-DIP
Voltage - Load		0 V ~ 600 V
On-State Resistance (Max)		45 Ohms

Documents & Media

RESOURCE TYPE		LINK
Datasheets		G3VM-601BY
Datasheets		MOS FET Relays Technical Info
Datasheets		G3VM Series Catalog
Datasheets		MOSFET Relay Troubleshooting Guide
Datasheets		SSR Design Considerations
Datasheets		How to Read Date Codes
Datasheets		G3VM Series 6-DIP

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.49.0055
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 321

Can ship immediately.
