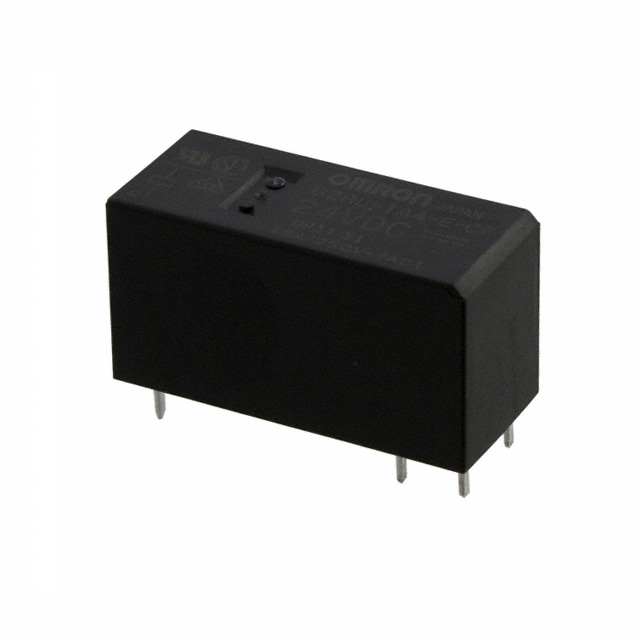

G2RL-1A4-E-CF DC24 _ Power Relays, Over 2 Amps_Relays

Part Number	G2RL-1A4-E-CF DC24
Manufacturer	Omron Electronic Components
Other Part Numbers	Z3082-ND G2RL-1A4-E-CFDC24 G2RL1A4ECFDC24 G2RL-1A4-E-CF DC24 BY OMB G2RL-1A4-E-CF-DC24 G2RL-1A4-E-CFDC24-ND G2RL1065D G2RL1A4ECF24DC G2RL1A4ECFDC24BYOMB Z3082
Description	RELAY GEN PURPOSE SPST 16A 24V
Detailed Description	General Purpose Relay SPST-NO (1 Form A) 24VDC Coil Through Hole
Manufacturer Standard Lead Time	14 weeks
Datasheet	Datasheet

Category		Relays Power Relays, Over 2 Amps
Manufacturer		Omron Electronic Components
Series		G2RL
Packaging		Tube
Part Status		Active
Mounting Type		Through Hole
Coil Voltage		24VDC
Operating Temperature		-40°C ~ 85°C
Termination Style		PC Pin
Approval Agency		CQC, CSA, UR, VDE
Relay Type		General Purpose
Coil Current		16.7 mA
Coil Type		Non Latching
Seal Rating		Sealed - Fully
Contact Material		Silver Alloy, Cadmium Free
Contact Form		SPST-NO (1 Form A)
Contact Rating (Current)		16 A
Switching Voltage		440VAC, 300VDC - Max
Must Release Voltage		2.4 VDC
Must Operate Voltage		16.8 VDC
Operate Time		15 ms
Release Time		5 ms
Coil Insulation		Class F
Load - Max Switching		7040VA, 4800W

RESOURCE TYPE		LINK
Datasheets		How to Read Date Codes

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.41.0050
Moisture Sensitivity Level (MSL)		Not Applicable
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
