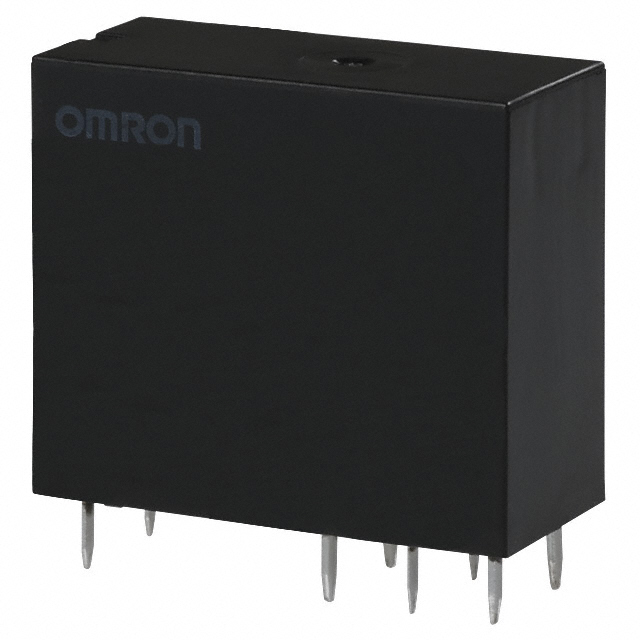

G2R-24-DC9 _ Power Relays, Over 2 Amps_Relays

Part Number	G2R-24-DC9
Manufacturer	Omron Electronic Components
Other Part Numbers	G2R-24-DC9-ND G2R24DC9 G2R249DC G2RN8157G
Description	RELAY GEN PURPOSE DPDT 4A 9V
Detailed Description	General Purpose Relay DPDT (2 Form C) 9VDC Coil Through Hole
Datasheet	Datasheet

Category		Relays Power Relays, Over 2 Amps
Manufacturer		Omron Electronic Components
Series		G2R
Packaging		Tray
Part Status		Active
Mounting Type		Through Hole
Coil Voltage		9VDC
Operating Temperature		-40°C ~ 70°C
Termination Style		PC Pin
Approval Agency		CSA, TUV, UR, VDE
Relay Type		General Purpose
Coil Current		58.8 mA
Coil Type		Non Latching
Seal Rating		Sealed - Fully
Contact Material		Silver Alloy
Contact Form		DPDT (2 Form C)
Contact Rating (Current)		4 A
Switching Voltage		380VAC, 125VDC - Max
Must Release Voltage		1.35 VDC
Must Operate Voltage		6.3 VDC
Operate Time		15 ms
Release Time		5 ms
Load - Max Switching		1520VA, 500W

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.41.0020
Moisture Sensitivity Level (MSL)		Not Applicable
RoHS Status		RoHS Compliant
