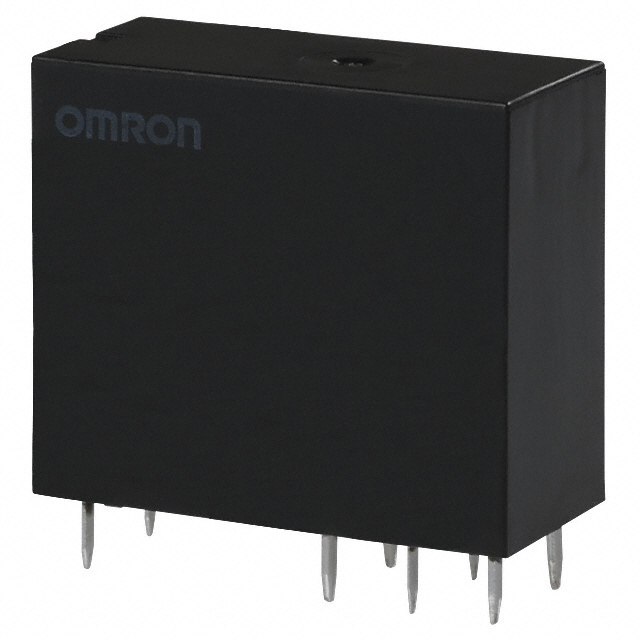

G2R-24 DC100 BY OMI _ Power Relays, Over 2 Amps_Relays

Part Number	G2R-24 DC100 BY OMI
Manufacturer	Omron Electronic Components
Other Part Numbers	39-G2R-24DC100BYOMI-ND 39-G2R-24DC100BYOMI G2R-24DC100-ND G2R24DC100 G2R-24DC100BYOMI G2R-24DC100 G2R-24 DC100
Description	RELAY GEN PURPOSE DPDT 4A 100V
Detailed Description	General Purpose Relay DPDT (2 Form C) 100VDC Coil Through Hole
Manufacturer Standard Lead Time	30 weeks
Datasheet	Datasheet

Category		Relays Power Relays, Over 2 Amps
Manufacturer		Omron Electronic Components
Series		G2R
Packaging		Tray
Part Status		Active
Mounting Type		Through Hole
Coil Voltage		100VDC
Operating Temperature		-40°C ~ 70°C
Termination Style		PC Pin
Approval Agency		CSA, TUV, UR, VDE
Relay Type		General Purpose
Coil Current		5.3 mA
Coil Type		Non Latching
Seal Rating		Sealed - Fully
Contact Material		Silver Alloy
Contact Form		DPDT (2 Form C)
Contact Rating (Current)		4 A
Switching Voltage		380VAC, 125VDC - Max
Must Release Voltage		15 VDC
Must Operate Voltage		70 VDC
Operate Time		15 ms
Release Time		5 ms
Load - Max Switching		1520VA, 500W

RESOURCE TYPE		LINK
Datasheets		G2R-24 DC100 BY OMI
Datasheets		How to Read Date Codes
Datasheets		Multiple Devices Location Oct/2019
Datasheets		G2R-24 Series
Datasheets		G2R-2,24 Series Circuit

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.49.0050
Moisture Sensitivity Level (MSL)		Not Applicable
RoHS Status		RoHS Compliant
