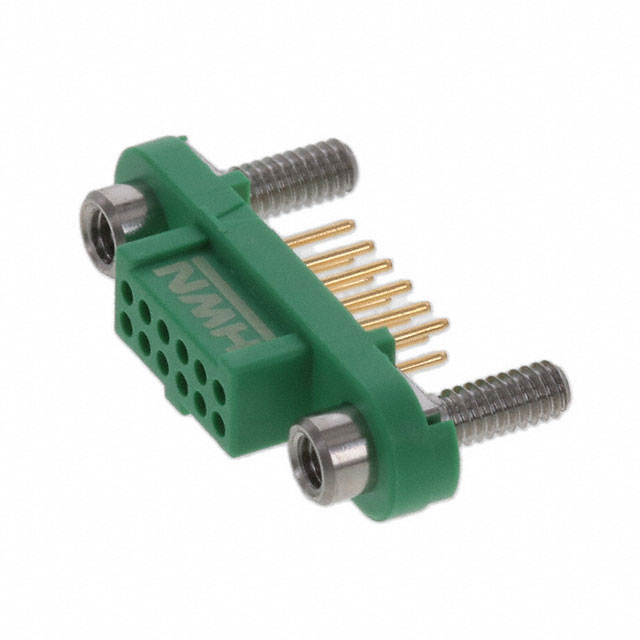

G125-FV11205F3P _ Headers, Receptacles, Female Sockets_Rectangular Connectors_Connectors, Interconnects

Part Number	G125-FV11205F3P
Manufacturer	Harwin
Other Part Numbers	952-4126-ND 3937-G125-FV11205F3P 952-4126
Description	CONN RCPT 12POS 0.049 GOLD PCB
Detailed Description	12 Position Receptacle Connector 0.049" (1.25mm) Through Hole Gold
Manufacturer Standard Lead Time	15 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects Rectangular Connectors Headers, Receptacles, Female Sockets
Manufacturer		Harwin
Series		Gecko SL
Packaging		Strip
Part Status		Active
Features		Jackscrews, Pick and Place, Polarizing Key
Connector Type		Receptacle
Voltage Rating		450V
Current Rating (Amps)		2A
Mounting Type		Through Hole
Number of Positions		12
Style		Board to Board or Cable
Operating Temperature		-65°C ~ 150°C
Contact Type		Female Socket
Fastening Type		Screw Lock
Number of Positions Loaded		All
Termination		Solder
Material Flammability Rating		UL94 V-0
Contact Material		Copper Alloy
Mated Stacking Heights		7.25mm, 7.33mm
Insulation Color		Green
Pitch - Mating		0.049" (1.25mm)
Contact Finish - Mating		Gold
Contact Finish Thickness - Mating		8.00µin (0.203µm)
Contact Finish - Post		Gold
Contact Finish Thickness - Post		8.00µin (0.203µm)
Contact Shape		Circular
Contact Length - Post		0.118" (3.00mm)
Insulation Height		0.207" (5.25mm)
Insulation Material		Polyamide (PA4T), Nylon 4T, Glass Filled, Halogen Free
Row Spacing - Mating		0.049" (1.25mm)
Number of Rows		2

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4040
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
