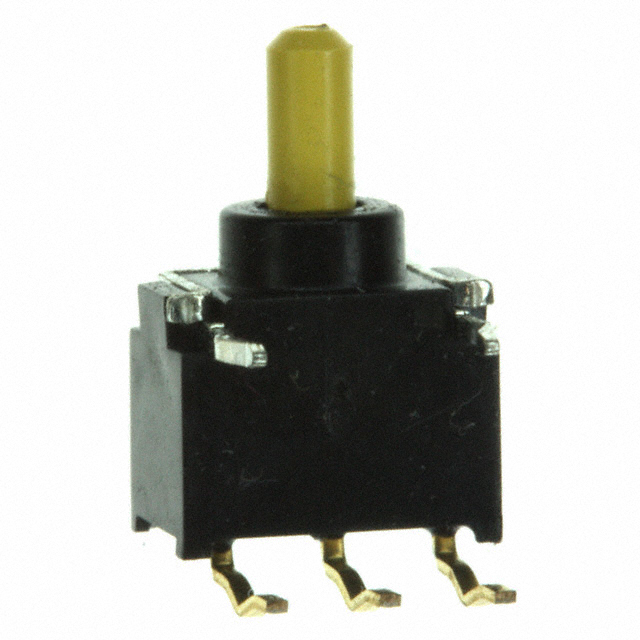

FT1E-5M-Z

FT1E-5M-Z

Part Number	FT1E-5M-Z
Manufacturer	Nidec Copal Electronics (Nidec Components)
Other Part Numbers	563-1147-ND 563-1147
Description	SWITCH TOGGLE SPDT 0.4VA 28V
Detailed Description	Toggle Switch SPDT Through Hole, Right Angle
Manufacturer Standard Lead Time	10 weeks
Datasheet	Datasheet

Product Attributes

Category		Switches Toggle Switches
Manufacturer		Nidec Copal Electronics (Nidec Components)
Series		FT
Packaging		Bulk
Part Status		Active
Features		Washable, Yellow Actuator
Current Rating (Amps)		0.4VA (AC/DC)
Mounting Type		Through Hole, Right Angle
Circuit		SPDT
Switch Function		On-Off-On
Operating Temperature		-40°C ~ 85°C
Termination Style		PC Pin
Illumination		Non-Illuminated
Bushing Thread		Unthreaded
Actuator Length		3.80mm
Actuator Type		Standard Round
Voltage Rating - AC		28 V
Voltage Rating - DC		28 V

Documents & Media

RESOURCE TYPE		LINK
Datasheets		FT1E-5M-Z

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.50.9065
Moisture Sensitivity Level (MSL)		1 (Unlimited)
RoHS Status		ROHS3 Compliant
