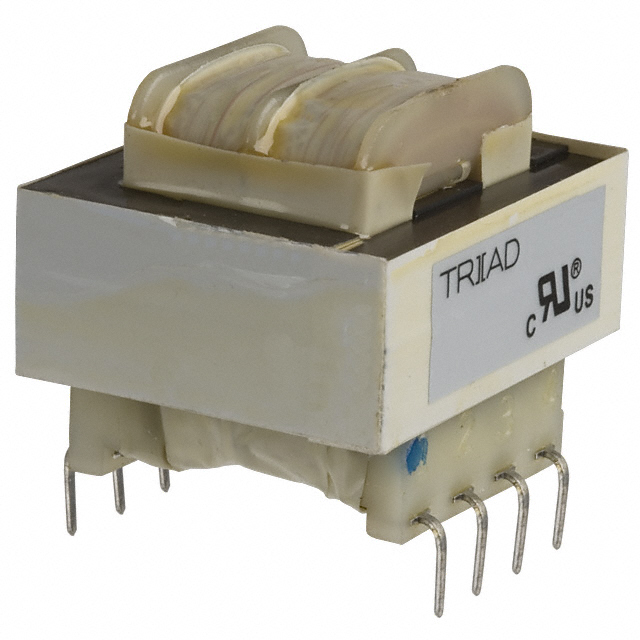

FS56-020

FS56-020

Part Number	FS56-020
Manufacturer	Triad Magnetics
Other Part Numbers	FS56-020-ND
Description	PWR XFMR LAMINATED 1.1VA TH
Manufacturer Standard Lead Time	3 weeks
Datasheet	Datasheet

Product Attributes

Category		Transformers Power Transformers
Manufacturer		Triad Magnetics
Series		Split Pack™
Packaging		Box
Part Status		Active
Size / Dimension		34.93mm L x 28.58mm W
Mounting Type		Through Hole
Type		Laminated Core
Weight		0.17 lb (77.11 g)
Termination Style		PC Pin
Primary Winding(s)		Dual
Secondary Winding(s)		Dual
Power - Max		1.1VA
Voltage - Isolation		2500Vrms
Current - Output (Max)		Parallel 40mA, Series 20mA
Voltage - Primary		115V, 230V
Height - Seated (Max)		23.80mm
Voltage - Secondary (Full Load)		Parallel 28V, Series 56V
Center Tap		No

Documents & Media

RESOURCE TYPE		LINK
Datasheets		FS56-020
Datasheets		Standard Part Warranty Terms
Datasheets		RoHS Statement

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8504.31.4035
Moisture Sensitivity Level (MSL)		Not Applicable
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
