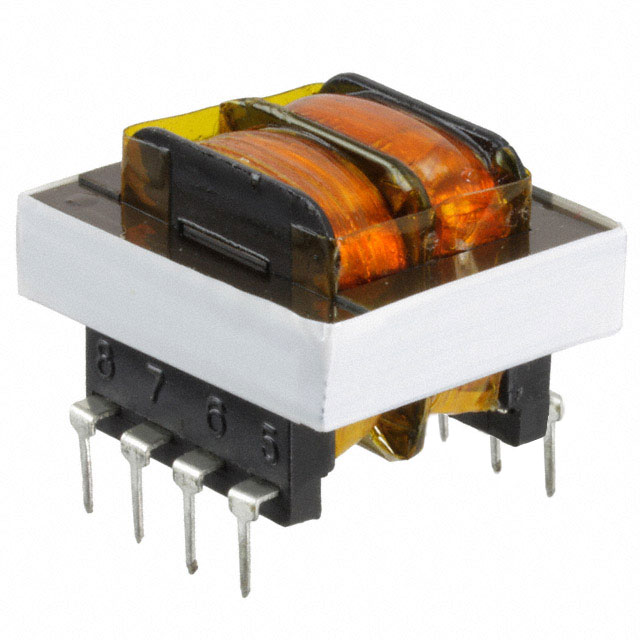

FS20-120-C2

FS20-120-C2

Part Number	FS20-120-C2
Manufacturer	Triad Magnetics
Other Part Numbers	237-1540-5-ND 237-1540 FS20-120-C2-B 237-1540-ND 237-1540-5
Description	PWR XFMR LAMINATED 2.4VA TH
Manufacturer Standard Lead Time	23 weeks

Product Attributes

Category		Transformers Power Transformers
Manufacturer		Triad Magnetics
Series		Split Pack™, Class 2/3, FS
Packaging		Tube
Part Status		Active
Size / Dimension		34.93mm L x 28.58mm W
Mounting Type		Through Hole
Type		Laminated Core
Weight		0.25 lb (113.4 g)
Termination Style		PC Pin
Primary Winding(s)		Dual
Secondary Winding(s)		Dual
Power - Max		2.4VA
Voltage - Isolation		4200Vrms
Current - Output (Max)		Parallel 240mA, Series 120mA
Voltage - Primary		115V, 230V
Height - Seated (Max)		30.15mm
Voltage - Secondary (Full Load)		Parallel 10V, Series 20V
Center Tap		No

Documents & Media

RESOURCE TYPE		LINK

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8504.31.4035
Moisture Sensitivity Level (MSL)		Not Applicable
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 14940

Can ship immediately.
