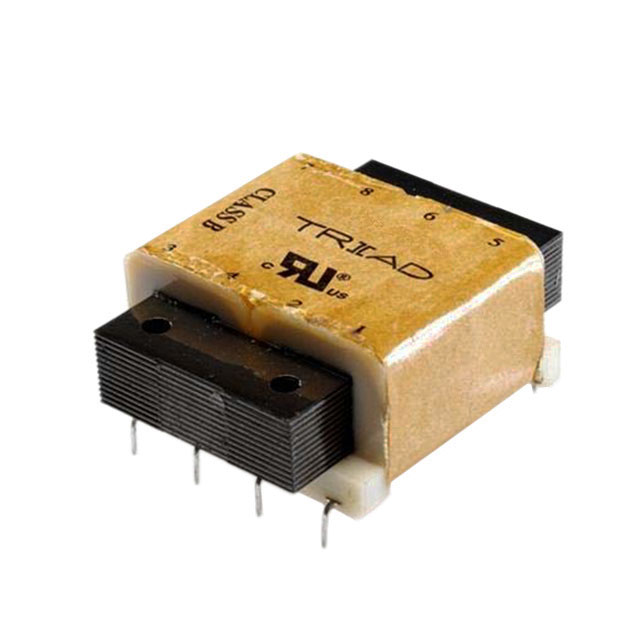

FP230-10

FP230-10

Part Number	FP230-10
Manufacturer	Triad Magnetics
Other Part Numbers	FP230-10-ND
Description	PWR XFMR LAMINATED 2.5VA TH
Manufacturer Standard Lead Time	23 weeks
Datasheet	Datasheet

Product Attributes

Category		Transformers Power Transformers
Manufacturer		Triad Magnetics
Series		Flat Pack™
Packaging		Box
Part Status		Active
Size / Dimension		47.63mm L x 39.67mm W
Mounting Type		Through Hole
Type		Laminated Core
Weight		0.313 lb (141.97 g)
Termination Style		PC Pin
Primary Winding(s)		Dual
Secondary Winding(s)		Dual
Power - Max		2.5VA
Voltage - Isolation		2000Vrms
Current - Output (Max)		Parallel 20mA, Series 10mA
Voltage - Primary		115V, 230V
Height - Seated (Max)		16.51mm
Voltage - Secondary (Full Load)		Parallel 120V, Series 230V
Center Tap		No

Documents & Media

RESOURCE TYPE		LINK
Datasheets		FP230-10
Datasheets		Standard Part Warranty Terms
Datasheets		RoHS Statement

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8504.31.4035
Moisture Sensitivity Level (MSL)		Not Applicable
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
