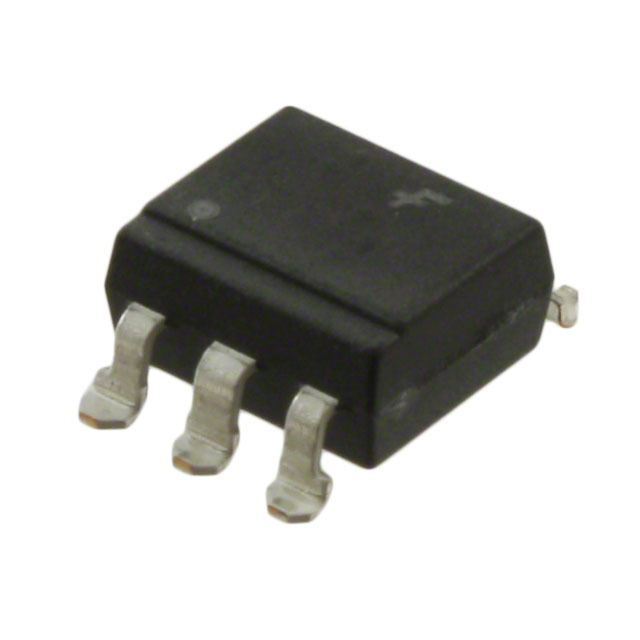

FOD4116SD _ Triac, SCR Output Optoisolators_Optoisolators_Isolators

Part Number	FOD4116SD
Manufacturer	Fairchild Semiconductor
Other Part Numbers	2156-FOD4116SD-ND 2156-FOD4116SD ONSFSCFOD4116SD
Description	TRIAC OUTPUT OPTOCOUPLER WITH ZE
Detailed Description	Optoisolator Triac Output 5000Vrms 1 Channel 6-SMD

Category		Isolators Optoisolators Triac, SCR Output Optoisolators
Manufacturer		Fairchild Semiconductor
Series
Packaging		Bulk
Part Status		Active
Package / Case		6-SMD, Gull Wing
Output Type		Triac
Mounting Type		Surface Mount
Operating Temperature		-55°C ~ 100°C
Voltage - Forward (Vf) (Typ)		1.25V
Voltage - Isolation		5000Vrms
Approval Agency		CSA, UL
Current - Hold (Ih)		500µA
Turn On Time		60µs
Supplier Device Package		6-SMD
Zero Crossing Circuit		Yes
Static dV/dt (Min)		10kV/µs
Current - LED Trigger (Ift) (Max)		1.3mA
Number of Channels		1
Voltage - Off State		600 V
Current - DC Forward (If) (Max)		30 mA
